51120, Murrelektronik Limited, 24V dc SPDT Interface Relay Module, DIN Rail

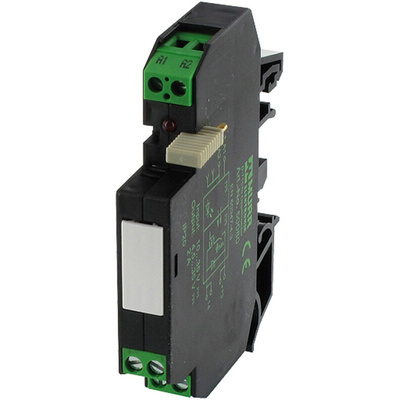

Murrelektronik Limited Interface Relay Module

The Murrelektronik Limited interface relay module is an innovative, ultra-compact electromechanical device equipped with a 24VDC coil voltage and an SPDT contact configuration. This relay module offers a complete solution without the need for separate sockets. It provides a quick and simple installation option. The device has many approvals and so can be used for many applications around the world. It offers a high-density solution for smaller electrical cabinets and other industrial applications thus, optimising your panel installation. This electromechanical relay module has a small footprint that makes it ideal for applications where space saving is essential.

Features and Benefits

SPDT 1C/O contact configuration with relay output up to 8A
Rated supply voltage of 24VDC
Agni contact material
Saves wiring and space
Coil/contact separation
LED red status indication
Operating temperature ranges between -20°C and 50°C

Applications

Industrial process control
Motor control applications
Electrical isolation
Signal matching between electronic controls

Certifications

IP20 rated
IEC 61140/ EN 61140
EN 60715

Datasheet
