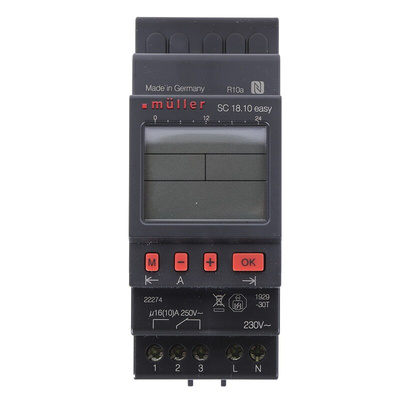

SC 18.10 easy, Muller Digital DIN Rail Time Switch 230 V ac, 1-Channel

SC 18.14/18.24 easy

Features and Benefits

Easy handling and quick and intuitive programming
Large, clear illuminated display with one line text
NFC Programming via smartphone (free Android App)
DIN Rail mounting
1 channel (137-1053) or 2 channel (137-1054)
Daily and weekly program
Astro program
Economical night program
Extra switching times
56 Memory locations
10 years battery-reserve
Exchangeable battery (CR 2032)
Minimum interval 1 min.
Switching capacity 16 A per channel
Permanent by date and time/holiday function
Manual permanent mode
Manual override
Automatic sorting of switching times on readout
Fully automatic daylight saving time
Elapsed time and pulse counter
Security PIN code

Muller Time Switch

The Finder interface relay module is an innovative, ultra-compact electromechanical device equipped with a 110VAC/DC coil and an SPDT 1C/O contact configuration. This narrow design interface relay works as a coupling element used to send control signals to and from a PLC. The high number of approvals make it useful for many applications around the world. It offers a high-density solution for smaller electrical cabinets and other industrial applications thus optimising your panel installation. This electromechanical relay module has a small footprint that makes it ideal for applications where space-saving is essential.

Features and Benefits

• DIN rail mounting
• Easy handling with quick and intuitive programming
• Large, clear, and illuminated display with one line text
• Time base is quartz
• Yearly program by extra switching times
• Exchangeable battery
• Minimum interval of 1 minute
• Switching capacity 16A per channel
• Permanent by date and time/holiday function
• Extra switching times ON, OFF, and pulse by date and time
• Manual permanent mode
• Manual override
• Fully automatic daylight saving time
• Elapsed time and pulse counter
• Security by PIN code
• Illuminated display
• Screw terminal connection
• Ambient temperatures range between -30°C and 55°C

Applications

• Ideal for outdoor and street lighting
• Control of lighting, heating and ventilation

Certifications

• IP20 rated
• DIN EN 60529

Remotely Programmable
