CMS 442 Series Threaded Sealed 5mm Lens

A range of sealed watertight panel mounting LED lenses from VCC. The CMS 442 series feature a Fresnel lens for wide viewing angle and a threaded body with twist-on retaining nut for secure panel mounting. Type 444 has a plain lens rather than the Fresnel lenses of the 442 series.

• Panel sealing to NEMA4
• Quick and easy assembly
• 442 series have a domed profile Fresnel lens, 2.5mm projection
• 444 type has a plain domed lens, 2.5mm projection
• Lens material polycarbonate UL 94-V2
• 0.31 inch (7.9 mm) diameter mounting
• Can be used with panels from 0.8 to 3.2 mm thickness

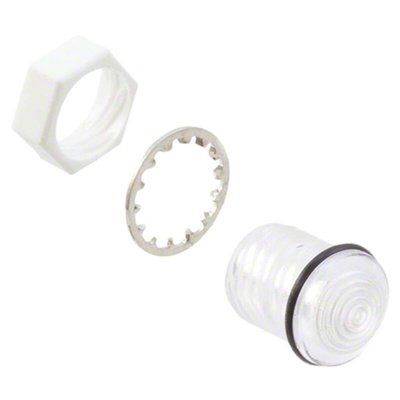

• Supplied with sealing ring, lock washer and retaining nut

Standards

UL 94-V2

VCC LED Lenses

CMS442 Threaded Lens with Seal drawing
