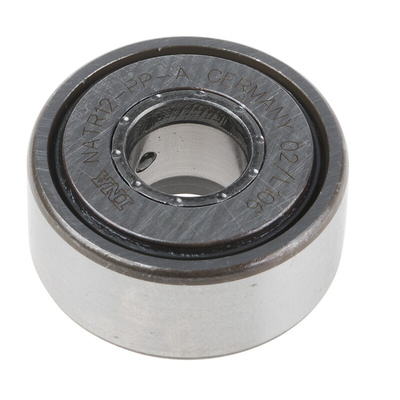

INA Yoke Cam Follower NATR12PPA, 12mm ID, 32mm OD, Опорный ролик

Yoke Type Track Rollers NATR Series

INA from Schaeffler yoke type track rollers are single or double row units mounted on shafts or studs. They comprise thick-walled outer rings with a profiled outside surface and needle roller and cage assemblies or full complement needle roller or cylindrical roller sets.
The series NATR..-PP have an outside surface with the optimised INA profile.

Features and Benefits

• Lower Hertzian pressure
• Edge loading under tilting is lower
• Wear of the mating track is reduced
• Operating life of the mating track is extended
• Three-stage sealing by plastic axial plain washers

Product Application Information

Yoke type track rollers can support high radial loads and axial loads arising from slight misalignment and skewed running. They are suitable for applications such as cam gears, bed ways and conveying equipment.

Suffixes

PP - Plastic axial plain washer with formed seal lip on both sides of the yoke type track roller, giving a three-stage seal
