UG06-0001-01, Flowline UG06 Series, Reflective Ultrasonic Liquid Level Transmitter Horizontal, Vertical Mounting Level Transmitter 2

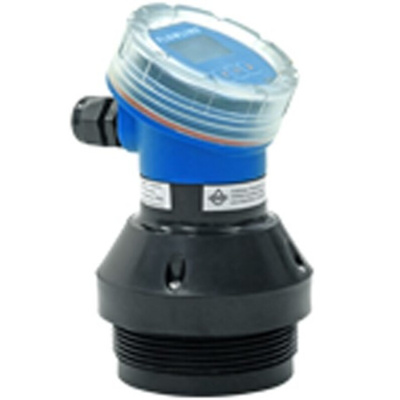

Flowline EchoPod UG06 Reflective Ultrasonic Liquid Level Transmitter

Flowline EchoPod UG06 general purpose reflective ultrasonic multi function level transmitter provide continuous level measurement up to 12 m. A 4 mA to 20 mA analogue signal output is configurable via an integral push button display module or Flowline WebCal software. The non-contact liquid level sensor features reflective technology that delivers reliable level measurement in condensing environments.

Features and Benefits

Reflective Technology measures reliably with condensation
Corrosion resistant PVDF transducer with IP68 PP enclosure
Fail-safe diagnostics with selectable signal fail-safe outputs
LCD display indicates level in inches, meters or percent of span
Narrow 3” (7.6 cm) beam width for applications with limited space
Windowed enclosure cap provides liquid tight level indication
Configuration via push button display or WebCal software
Automatic temperature compensation from -40º to 80º C.
