Fluke VPS410 Series VPS410-II-R Oscilloscope Probe, Passive Type, 500MHz, 1:10, Test Lead Connector, Щупы для осциллографа

Fluke VPS410-II ScopeMeter® Voltage Probe Sets

Features

Bandwidth 500 MHz
Probe Ratio 10:1
Cable Length 1.2 meters
Input Impedance 10 MOhm
Capacitance 12 pF
Approx. Rise Time 3 ns
Max. Voltage 1000 V CAT III / 600 V CAT IV
Compensation Range 10 to 22 pF
Safety Rating 1000 V CAT III / 600 V CAT IV
Choice of colours: Red (137-2358); Blue (137-2359); Grey (137-2360); Green (137-2361)

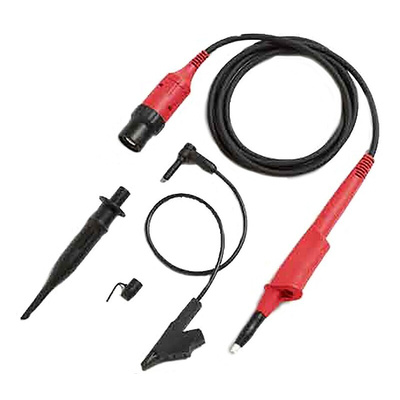

Sets nclude probe, hook clip, ground lead, ground spring, insulation sleeve

FLUKE Oscilloscope Probe, 500MHz Bandwidth, 11.5 ± 1pF Input Capacitance - VPS410 Series - VPS410-II-R

Want to put your device on the spot and test its performance? Get this oscilloscope probe from FLUKE to help you out. It steps down voltages with an attenuation of 1:10 to accurately check electronic characteristics. You can rest assured you're getting everything you need for the job, from the voltage probe to a ground lead and clips to keep it all in place. Thanks to its high 10MΩ input resistance, this device is ideal for testing most industrial sensors and transducers.

• 1.2m cable gives you enough length for comfortable testing on a bench
• CAT III and CAT IV ratings indicate it's the right choice for industrial testing applications
• Ground spring probe tip lets you quickly test sensitive devices without causing damage

Applications

• Electronics manufacturing
• Medical industry
• Research and development labs
• Telecommunications networks

What's the difference between the options in this series?

The difference between this probe and others in the series is the colour. This one's red, while others in the lineup are green (137-2361), blue (137-2359) and grey (137-2360). Different probe colours let you quickly distinguish between testing units to streamline your workflow.
