Fluke VPS410 Series VPS410-II-B Oscilloscope Probe, Passive Type, 500MHz, 1:10, Test Lead Connector, Щупы для осциллографа

Fluke VPS410-II ScopeMeter® Voltage Probe Sets

Features

Bandwidth 500 MHz
Probe Ratio 10:1
Cable Length 1.2 meters
Input Impedance 10 MOhm
Capacitance 12 pF
Approx. Rise Time 3 ns
Max. Voltage 1000 V CAT III / 600 V CAT IV
Compensation Range 10 to 22 pF
Safety Rating 1000 V CAT III / 600 V CAT IV
Choice of colours: Red (137-2358); Blue (137-2359); Grey (137-2360); Green (137-2361)

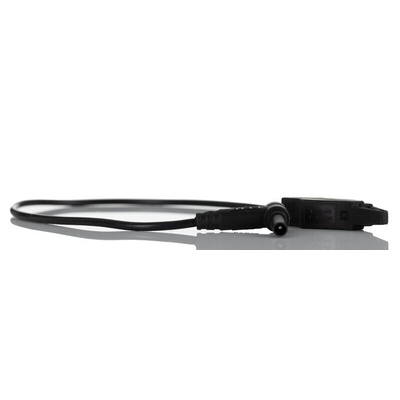

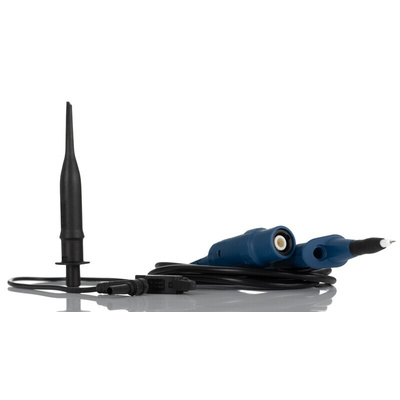

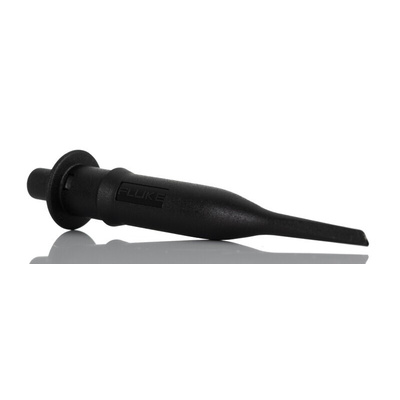

Sets nclude probe, hook clip, ground lead, ground spring, insulation sleeve

FLUKE Oscilloscope Probe, 25pF Maximum Compensation Range, 3000m Maximum Altitude - VPS410 Series - VPS410-II-B

To quickly pinpoint issues in your system, pick this blue oscilloscope probe kit from FLUKE. It steps down the voltages you're testing to a ratio of 10:1 to safely and accurately get the measurements you're after. Thanks to its wide 500MHz bandwidth, capturing most signal frequencies at fast speeds is a breeze. A 1.2m cable means you can comfortably reach around your equipment, which is ideal for in-the-field measuring. Double insulation is on hand to keep you safe from the risk of shocks. Rest assured, this powerhouse is rated for use in demanding industrial CAT III 1000V and CAT IV 600V situations, making it a go-to tool for electrical engineers.

• Hook clips included to keep your components in order
• Ground spring in the probe tip lets you avoid measurement errors caused by surges
• Insulation sleeve prevents unwanted shocks from harming the user

Applications

• Electronics design
• Medical devices
• Telecommunications industry

What test tools can does this probe work with?

This probe seamlessly plugs into a selection of FLUKE's readers, such as a digital portable oscilloscope (230-5657). Once connected, you can take and save measurements in a jiffy.
