Fluke VPS410 Series VPS410-II-G Oscilloscope Probe, Passive Type, 500MHz, 1:10, Test Lead Connector, Щупы для осциллографа

Fluke VPS410-II ScopeMeter® Voltage Probe Sets

Features

Bandwidth 500 MHz
Probe Ratio 10:1
Cable Length 1.2 meters
Input Impedance 10 MOhm
Capacitance 12 pF
Approx. Rise Time 3 ns
Max. Voltage 1000 V CAT III / 600 V CAT IV
Compensation Range 10 to 22 pF
Safety Rating 1000 V CAT III / 600 V CAT IV
Choice of colours: Red (137-2358); Blue (137-2359); Grey (137-2360); Green (137-2361)

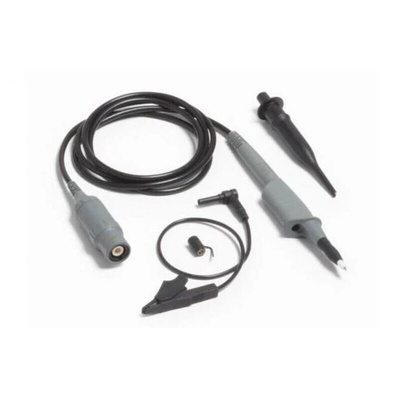

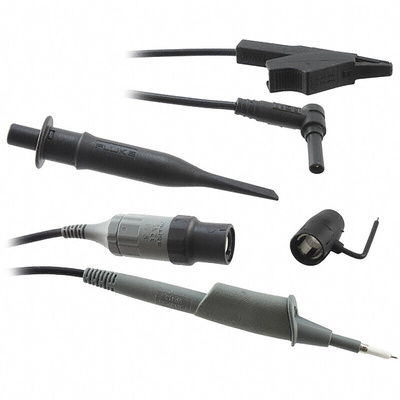

Sets nclude probe, hook clip, ground lead, ground spring, insulation sleeve

FLUKE Oscilloscope Probe, 11.5 ±1pF Input Capacitance, CAT IV 600V Maximum Input Voltage - VPS410 Series - VPS410-II-G

For quick-as-a-flash electrical testing, reach for this oscilloscope probe set from FLUKE. It contains all the kit you need to take measurements, including the voltage attachment, tip accessories and clips to keep everything in order. This mini powerhouse is rated for CAT III 1000V and CAT IV 600V applications, so it's an all-rounder for industrial use. Thanks to the double-insulated design, you stay protected from the risk of shocks. A 1.2m cable gives you plenty of room to move while you get to work.

• Ground spring tip accessory redirects excess electricity to achieve accurate measurements
• Alligator clip keeps ground lead in place during operation
• Grey probe sleeve for use in a colour-coded system

Applications

• Telecommunications systems
• Electronic device design
• Medical facilities

Where can I use this oscilloscope probe?

This probe's high bandwidth and input resistance make it a smart choice for general industrial device testing. If you need something smaller, pick up the VPS510 voltage probe (773-3574). When you're working with heavy-duty equipment like motors, you'll want a high-voltage option (240-6186).

’Buy a Fluke, Get one Free’ is back!!
Between March 1st, 2024 and August 31st, 2024, the customer spends £150 or more on a qualifying Fluke product (Fluke Industrial, Fluke Calibration, Fluke Networks, or Beha-Amprobe).
Customer claims their tool online at: www.fluke.co.uk/freefluke
A proof of purchase in the form of a receipt or invoice is required.

Datasheet

Datasheet - VPS410-II-G
