Fluke VPS410 Series VPS410-II-V Oscilloscope Probe, Passive Type, 500MHz, 1:10, Test Lead Connector, Щупы для осциллографа

Fluke VPS410-II ScopeMeter® Voltage Probe Sets

Features

Bandwidth 500 MHz
Probe Ratio 10:1
Cable Length 1.2 meters
Input Impedance 10 MOhm
Capacitance 12 pF
Approx. Rise Time 3 ns
Max. Voltage 1000 V CAT III / 600 V CAT IV
Compensation Range 10 to 22 pF
Safety Rating 1000 V CAT III / 600 V CAT IV
Choice of colours: Red (137-2358); Blue (137-2359); Grey (137-2360); Green (137-2361)
Sets nclude probe, hook clip, ground lead, ground spring, insulation sleeve

FLUKE Oscilloscope Probe, 500MHz Bandwidth, 11.5 ±1pF Input Capacitance - VPS410 Series - VPS410-II-V

Get the measure of your electrical equipment with this oscilloscope probe from FLUKE. It plugs directly into your device to test circuits and give accurate readings. Thanks to its high 10MΩ input resistance rating, this small-but-mighty unit is ready to take on the toughest jobs in system testing. CAT III 1000V and CAT IV 600V ratings indicate it can handle the demands of industrial circuitry design. To make sure you and your equipment stay safe, the probe steps down voltages with 10:1 attenuation.

• 1.2m cable offers enough reach to comfortably carry out tests on a workbench
• Double-insulated design to protect readings from EMI and boost accuracy
• Mini alligator clip holds the ground lead safely in place to prevent damage from bending during storage

Applications

• Medical device design
• Electronics development
• Automotive industry

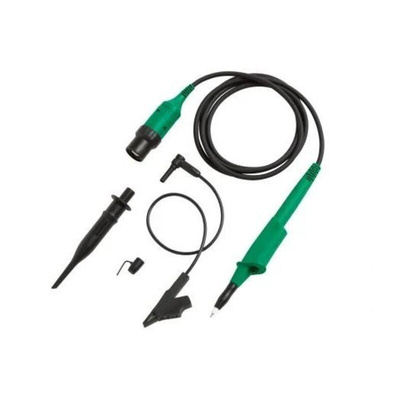

What's included in the set?

This set has everything you need to take measurements accurately, including the green voltage probe, a ground lead and tip accessories. AS you don't have to rummage around for accessories, you can make quick work of your reading tasks.

’Buy a Fluke, Get one Free’ is back!!
Between March 1st, 2024 and August 31st, 2024, the customer spends £150 or more on a qualifying Fluke product (Fluke Industrial, Fluke Calibration, Fluke Networks, or Beha-Amprobe).
Customer claims their tool online at: www.fluke.co.uk/freefluke
A proof of purchase in the form of a receipt or invoice is required.

Datasheet

Datasheet - VPS410-II-V
