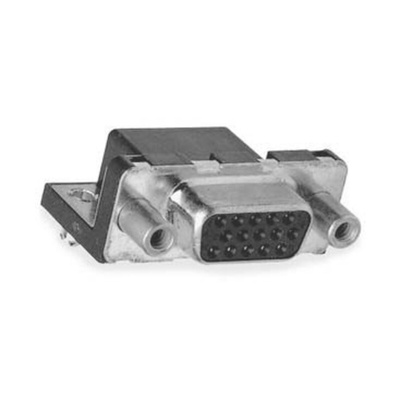

ICD15S13E6GX00LF, Amphenol ICC CD 15 Way Right Angle Plug-In Mount D-sub Connector Socket, 2.285mm Pitch, with Screw, Разъем

1372639
Номер производителя: ICD15S13E6GX00LFПроизводитель: Amphenol ICC
Цена за шт.
1025.70 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

IDC Series

Professional range of through hole D-Sub connectors from the FCI ICD series. All the connectors feature a right angle body orientation.

Right Angle
Copper Alloy
2.29 mm Pitch
Through Hole

The new High Density D-Subminiature range is part of FCI's I/O-Connections portfolio which provides customers access to a wide range of industry standard and application specific I/O interconnect solutions. FCI's I/O connector solutions complete your board and system designs by providing high-density and high-speed interfaces to enable interconnect technologies for networking, storage and memory and complementary products for power distribution. Our range of standardized I/O solutions enables full compliance to industry standards, such as Ethernet, SFF, Infiniband, USB, PCMCIA or HDMI. FCI also has the capability to provide customized I/O solutions optimized to address application specific requirements. Through FCI's high-speed, power, assembly and mechanical packaging expertise, you gain the advantage of getting your signals out of the box at optimal cost and performance. FCI's I/O connectors - coupled with FCI's extensive range of backplane and board-to-board connectors and cable assembly products-enable complete link solutions for your equipment designs. FCI's D-Subminiature connectors are part of an industry standard for applications requiring robust and reliable connectors. These D-Subminiature connectors are one of the most popular Input - Output interconnects, addressing a wide variety of applications in Telecommunications, Data, Consumer, Industrial, Military, Instrumentation and Medical markets. Since many years FCI offers a wide range of D-Subminiature connectors to meet all design requirements, and to address increasing needs for high density packaging, FCI developed the D-Subminiature High Density Range.

Compact-D is the answer to increasing need for higher density packaging
Contact layout 15 to 78 positions available
Selected layouts are also available in Press-fit & Pin-in-Paste version
Comes with different PCB mounting and panel mounting accessory options
RoHS compliant

D-Sub Connectors - FCI

Техническая спецификация
pdfFCI,ICD15S13E6GX00LF,Conn,Rect drawing
Глубина:
15.53мм
Длина:
30.81мм
Кол-во контактов:
15
Концевая заделка:
Припой
Материал контактов:
Медный сплав
Материал корпуса:
Термопластик
Монтажное оборудование:
Винт
Номинал тока:
3A
Номинальное напряжение:
300.0 V
Ориентация корпуса:
Правый угол
Рабочая температура - максимальная:
+125°C
Рабочая температура - минимальная:
-55.0°C
Размеры:
30.81 x 12.58 x 15.53мм
Род:
Female
Серия:
CD
Смешанная схема контактов:
15W3
Тип монтажа:
Plug-In Mount
Тип разъема D:
High Density D-Sub
Шаг:
2.285мм
Ширина:
12.58мм
