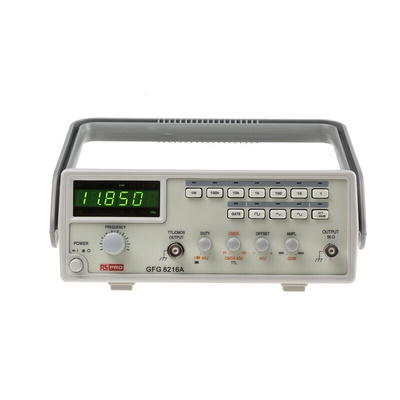

RS PRO IFG8216A Function Generator & Counter, 0.3Hz Min, 3MHz Max, Variable Sweep - RS Calibration, Счетчик функций

RS PRO Function Generator

From RS PRO, comes a range of high quality and user-friendly function generators. Manufactured to industry standards, these function generators are stable, low-distortion instruments which generate signals in the frequency range up to 3 MHz and the counter can be switched to measure and display the frequency of an external signal up to 150 MHz

Features and benefits:

• Waveforms-Sine, triangle, square, ramp, TTL, and CMOS output


• Variable DC offset control


• Built-in 6 Digits Counter with INT/EXT function up to 150MHz


• 0.3Hz ∼ 3MHz and 0.5Hz ∼ 5MHz frequency ranges available in this range of function generators


• External voltage-controlled frequency (VCF) function


• Duty Cycle Control with Signal Inversion Capability


• Maximum Operating Temperature - +40 °C

Applications

Function generators have a range of application use such as;

• Audio response testing


• Vibration testing


• Servo system evaluations


• Ultrasound applications

What is a function generator?

Function generators are devices that produce various patterns of voltage at varieties of amplitudes and frequencies.

Why choose RS PRO?

RS PRO is our own brand of high-quality products whilst bringing you great value for money. Our wide range of products have been engineered to meet high industry standards, so you are ensured reliable and robust solutions.

Supplied with

Instruction manual, test leads
