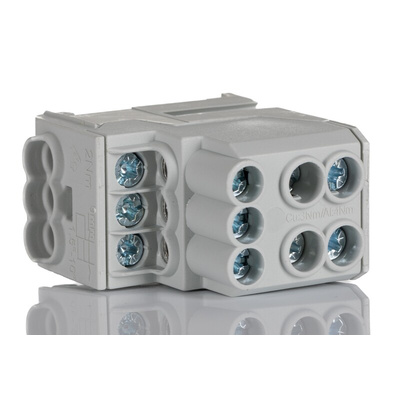

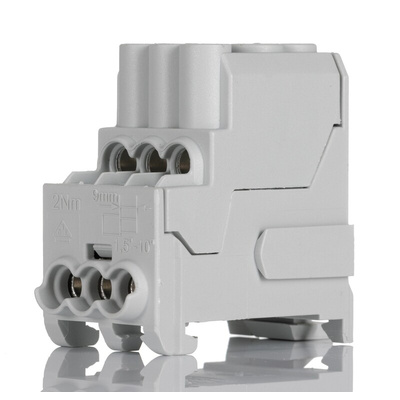

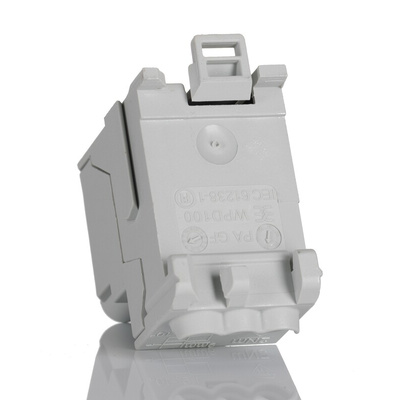

1561910000, Weidmuller Distribution Block, 6 Way, 10 mm², 25 mm², 100A, 690 V ac/dc, Grey, Распределительный блок

Weidmuller Distribution Block, Snap-On Mounting, 102g Weight - W Series - 1561910000

Get your power supply to branch out with this distribution block from Weidmuller. It's just what you need to distribute electricity efficiently to various devices, so it reduces wiring complexities and limits the number of components on your circuit board. As the unit's Wemid construction is resistant to heat and impact, it's a safe bet for use in harsh industrial settings. Thanks to its compact dimensions of 55.4 (H) x 30.2 (W) x 49mm (D), this distribution block helps you maximise space in your setup.

• Broad operating temperature range between -50°C and +130°C for use in extreme settings
• Snaps onto a DIN rail for quick and tool-free installation
• Closed sides minimise the chance of contaminants affecting its performance
• Screw connectors hold conductors securely, even in the event of heavy vibrations

Applications

• Electric vehicle charging stations
• Power distribution control
• Lifting and hoisting equipment
• Conveyor systems

Does this distribution block pose a fire risk?

No, this component stops burning in 10 seconds or less for enhanced safety in the event of a fire.

The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
