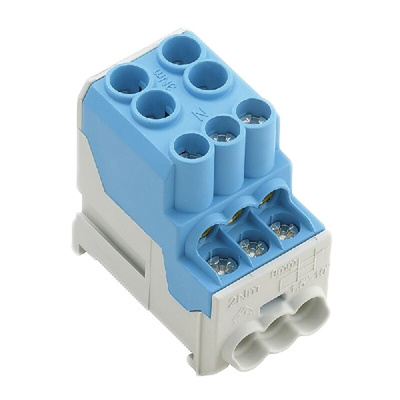

1561920000, Weidmuller Distribution Block, 6 Way, 10 mm², 25 mm², 101A, 1 kV ac/dc, Blue, Распределительный блок

Weidmuller Distribution Block, 55.4mm Height, 100A Current Rating - W Series - 1561920000

Spread the power evenly throughout your system with this distribution block from Weidmuller. It distributes electricity to bring several devices to life all at once. It also isolates the connections to protect your network from a total shutdown in the event of a short circuit. Thanks to the wide operating temperature range between -50°C and +130°C, this unit upholds its duties in even the most demanding conditions. It has a voltage rating of 690V AC/DC and a current rating of 100A, so it's primed and ready to tackle multiple heavy-duty systems simultaneously.

Features & Benefits

• Light weight of 102g to place minimal strain on your system
• Screw connection simplifies wiring for faster installation
• Snap-on design means you can mount it onto a DIN rail in a flash

Applications

• HVAC systems
• Control cabinets
• Energy sector
• Automation equipment

What material is this product made from?

This block is made from Wemid, which is resistant to heat and impact to hold its own in heavy-duty applications.

How many blocks come in a pack?

There are three blocks in each pack, letting you set up a complex system.

The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
