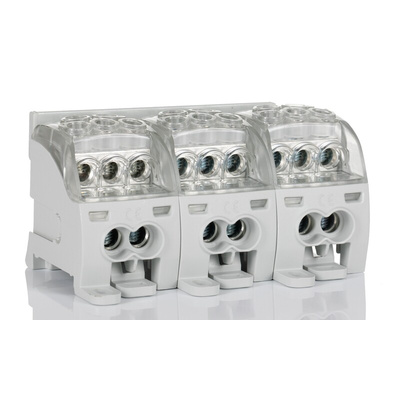

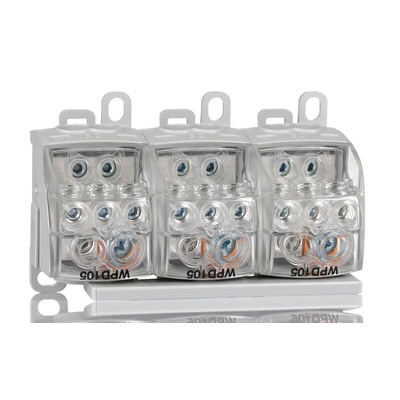

1562190000, Weidmuller Distribution Block, 15 Way, 16 mm², 25 mm², 35 mm², 125A, 1 kV ac/dc, Grey, Распределительный блок

Weidmuller Distribution Block, 214A Current Rating, Screw Connection - W Series - 1562190000

Looking to take charge of the flow of electricity in your system? Turn to this distribution block from Weidmuller. It allows you to efficiently distribute power from a single input to multiple outputs, helping to reduce your wiring needs. There's no need to worry about slip-ups, as this unit's screw terminals hold your wires securely in place to prevent disconnections and downtime. Thanks to a wide operating temperature range between -50°C and +130°C, it doesn't break a sweat in harsh environments. As it measures only 70 (H) x 106.8 (W) x 53.7mm (D), it's a space-saver in a crowded setup.

Features & Benefits

• Self-extinguishing for safety in the event of a fire
• Voltage rating of 1000V AC/DC for use in demanding applications
• Snap-on mounting for quick installation on DIN rails without the need for any tools

Applications

• Electric vehicle charging stations
• Automation systems
• Power distribution centres

What material is this distribution block made of?

It's made of Wemid, which is resistant to impact and wear for use in harsh industrial environments.

The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
