Lascar Development Kit

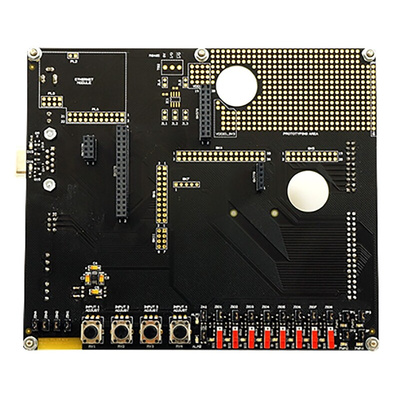

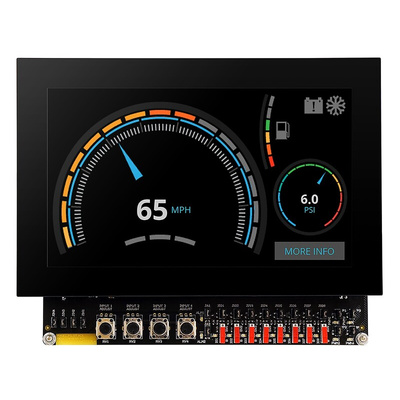

The Lascar development kit is a state-of-the-art board that allows the users to connect to and test the input and output functionality of the PanelPilotACE display. This kit is for the 7in compatible display. There are 4 x analogue inputs each with ±5VDC analogue dial and screw terminals for external inputs and 8 x digital I/O’s each with input switch, status LED and pin headers to connect external circuitry.

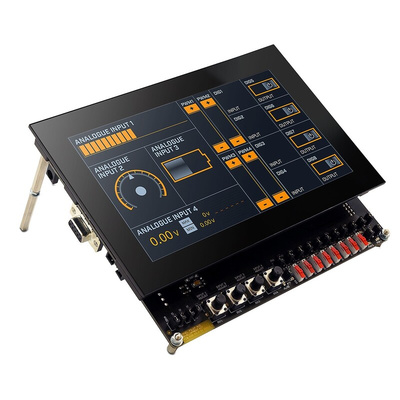

The kit includes a development board, an SGD 70-A PanelPilotACE display, a USB cable and a power supply. The development board includes LEDs and switches for digital I/O’s, four potentiometers to generate analogue inputs, variable brightness LEDs for PWM outputs and a prototyping area for testing circuitry. Connections are also available for the display’s RS232, RS485, SPI and I²C functionality.

Features and Benefits

4 x PWM outputs each with LED indication and pin headers to connect external circuitry
2 x alarm outputs with status LED and pin headers to connect external circuitry
Supply voltage rating ranging from 5VDC to 30VDC
Height of 171mm, width of 147 and depth of 75mm

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
