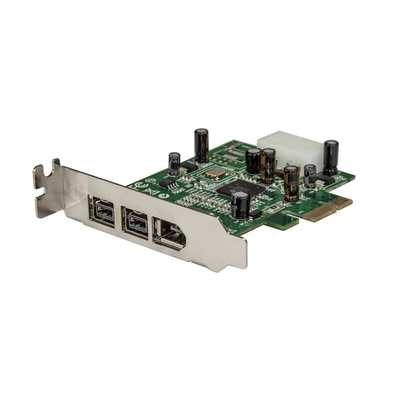

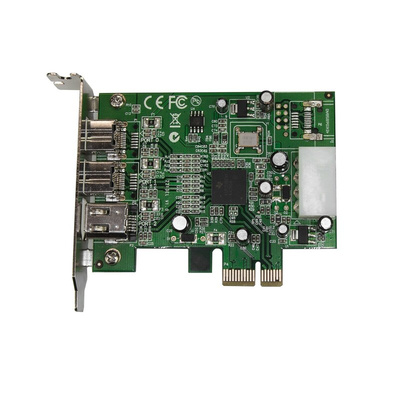

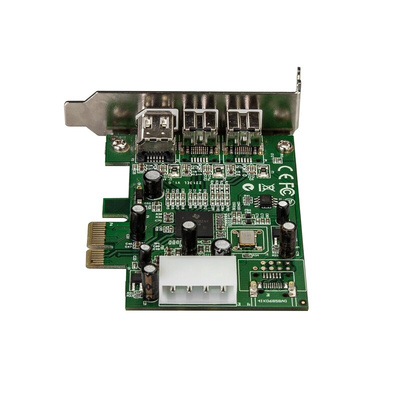

PEX1394B3LP, StarTech.com 3 Port PCIe Firewire Card

PEX1394B3LP PCI Express Card

This 3 Port PCI Express FireWire card comes equipped with a low profile bracket for installation in small form factor PCs, and includes an optional full-size bracket for installation in a standard-sized PC case.
The FireWire card can be installed in a PCIe slot to add two IEEE1394b (FireWire 800 - 9 pin) ports and one IEEE1394a (FireWire 400 - 6 pin) port, providing broad compatibility with a wide range of FireWire devices (e.g. DV camcorders, external hard drives, digital cameras, etc.).
The 2x FireWire 800 and 1x FireWire 400 card features a native (single chip) PCI Express chipset, which provides faster, more reliable and cost-effective performance than expansion cards that utilize a "bridge" chip.

Features & Benefits

• Two 9-pin FireWire 800 ports, each with transfer rates up to 800Mbps
• One 6-pin FireWire 400 port, each with transfer rates up to 400Mbps
• Includes full/standard profile installation bracket
• Built with a native PCI Express chipset, no bridge chip
• Internal power connector for high-powered FireWire devices
• Compliant with IEEE 1394b and backwards compatible with IEEE 1394a - 2000 as well as 1394-1995 standards
• Plug-and-Play and hot-swap compatible
• Add 3 FireWire ports to a standard or small form factor (SFF) computer with support for high-powered FireWire devices
• Native PCI Express chipset design rather than a bridge chip, ensures a fast, reliable and cost-effective FireWire expansion
• Backed by a StarTech.com lifetime warranty and free lifetime technical support

Applications

• Add a high-speed FireWire port to a desktop without any FireWire support
• Connect a digital camera to a desktop with a PCI Express slot to download photos and video
• Connect a high-speed external hard drive to a PCI Express-enabled system

What’s in the package?

• PCI Express FireWire Card
• FireWire Cable
• Full Profile Bracket
• Software CD
• Instruction Manual
