PEX1PCI1, Startech PCIe to PCI Converter

1383574
Номер производителя: PEX1PCI1Производитель: Startech
Цена за шт.
20178.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Supplied with

A spare full size bracket for PCI Express card

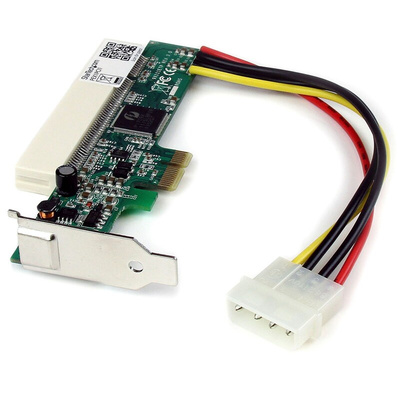

PCI Express to PCI Adapter Card

This PCIe to PCI Adapter Card lets you use low profile PCI expansion cards in a server or desktop motherboard PCI Express slot. Compliant with PCI Express Specification 1.0a and PCI Specification 2.2, the adapter card connects through a PCIe 1x slot to provide a low profile PCI slot in its place. A spare full size bracket for PCI Express card is also included for use in larger desktop or server PCI Express slots.
A versatile solution, the adapter card converts PCIe to PCI or PCI-X
a built-on LP4 power connector links the card to the computer power supply, allowing you to install universal voltage PCI cards (3.3V/5V).
The adapter card offers an economical solution that lets you extend the usability of older or extra PCI Bus cards in newer PCIe capable systems.
To ensure suitable installation in any low profile server or desktop computer, the PCIe/PCI adapter features an innovative bracket design that adapts and secures the low profile PCI or PCI-X card into the converted slot.

Features & Benefits

• Innovative bracket design adapts and secures the existing half-height/low profile bracket of the PCI Card
• PCI Express base spec 1.0a compliant for up to 250MBps of available bandwidth
• LP4 Power Connector Included for Universal Voltage PCI Cards (3.3V/5V)
• Compliant with PCI Express to PCI/PCI-X Bridge spec 1.0
• No driver or software installation
• The unique bracket design allows a low profile/half-height PCI card to work seamlessly in a PCI Express-based expansion slot
• Backed by a StarTech.com 2-year warranty and free lifetime technical support

Applications

• Use older PCI-based cards on new PCI Express-enabled computer systems
• Install a low profile/half-height PCI card into a full profile PCI Express system
• Industrial and legacy PCI cards may be hard to find or too costly to replace

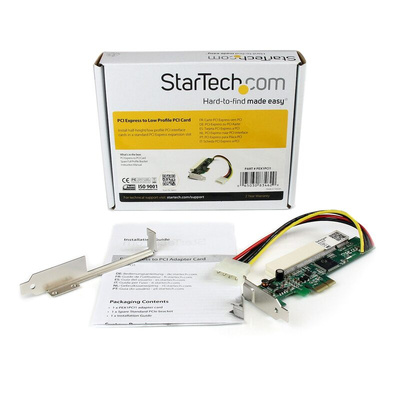

What’s in the package?

• PCI Express to PCI Card
• Spare Full Profile Bracket
• Instruction Manual

Slot Conversion and Extension

Техническая спецификация
pdfPEX1PCI1 Datasheet
Выходные соединения:
PCI-X
Количество портов:
2
Шина - тип:
PCIe
