PEX2PCI4, Startech PCIe to 4 slot PCI Expansion Bay

1383575
Номер производителя: PEX2PCI4Производитель: Startech
Цена за шт.
148311.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

PCI Express to 4 Slot PCI Expansion System

StarTech.com's innovative PCI Express to PCI Expansion Chassis provides a quick and simple solution to I/O expandability on almost any PCI Express (PCIe) enabled system. Adding external PCI slots to a server/workstation or laptop, this cost-effective and time-saving method of simply adding additional PCI cards to a server/workstation or providing a platform to be able to swap PCI add-in cards between a mobile and desktop setup is the optimal method of maximizing the I/O capabilities of new or existing systems.

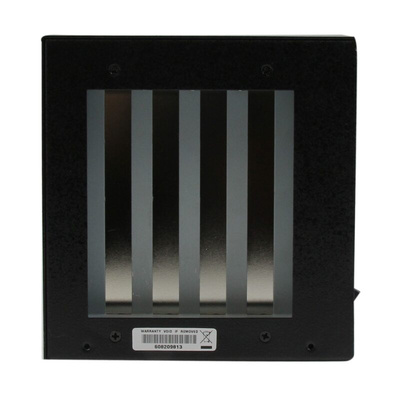

The external expansion chassis adds four PCI slots (32-bit/33MHz) to the host computer system, through a single PCI Express connection. Providing total bandwidth of up to 250MBps from the x1 PCIe host controller card, which allows the host computer to function as though the cards in the expansion chassis were connected directly to the motherboard.

A dependable I/O expansion solution, the Expansion Chassis is backed by StarTech.com's 2-year warranty and free lifetime technical support.

Features & Benefits

• Add an additional 4 PCI slots (32-bit/33 MHz), using PCI Express
• Rugged steel construction
• Supports both 5V and 3.3V &
5V add-in PCI cards

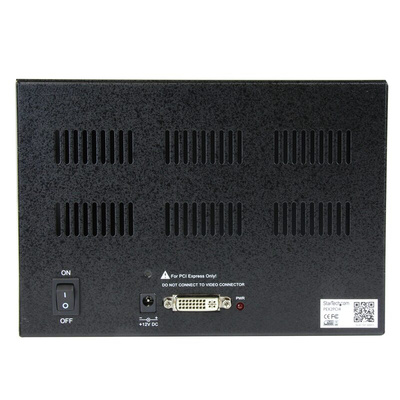

• Self-powered Expansion box with an on/off button
• No driver or software installation
• PCI Express adapter card includes both Full/Low Profile installation brackets
• Convert a single PCI Express slot to four additional external PCI slots without any driver or software installation required
• External expansion enclosure simplifies swapping PCI cards, without ever having to move or take apart the main desktop/server
• Backed by a StarTech.com 2-year warranty and free lifetime technical support

Applications

• Expand an existing system's I/O capabilities without having to purchase an entirely new system.
• Ideal for system testers, and engineers who may need to regularly swap out I/O cards.
• Add full height cards to a small form factor system.
• Provide PCI support to systems with only PCIe slots.
• Provide data acquisition, telephony, storage and audio capabilities by having additional I/O expansion slots.

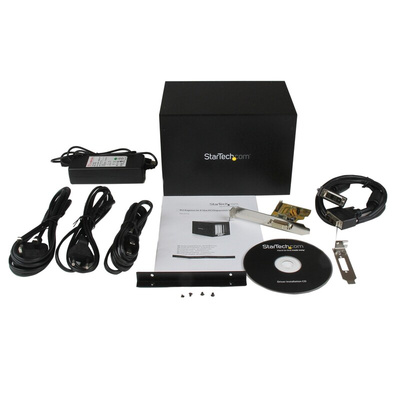

What’s in the package?

• PCI Expansion box
• PCI Express Card
• 3ft DVI Cable
• Low Profile Bracket
• Screw Kit
• Power Cable
• Universal power adapter: comes ready for NA/EU/UK only when you buy in NA/EU/UK
comes ready for Australia and New Zealand only when you buy in Australia and New Zealand
• Installation CD
• Instruction Manual

Slot Conversion and Extension

Техническая спецификация
pdfPEX2PCI4 Datasheet
Выходные соединения:
PCI-X
Количество портов:
4
Шина - тип:
PCIe
