ICUSBAUDIO7D, Startech 7.1 Channel USB 2.0 Sound Card

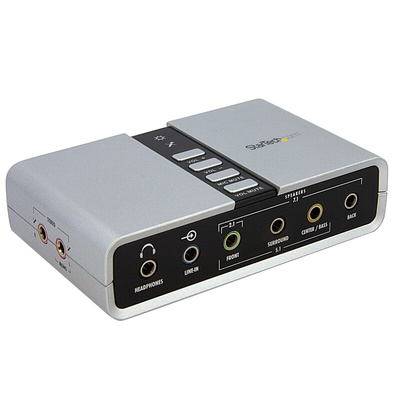

ICUSBAUDIO7D 7.1 USB Sound Card

This versatile External USB Sound Card/Audio Adapter offers a high quality solution for upgrading desktop or laptop sound.

Providing a robust USB audio experience, the USB sound card connects to a host computer through a single USB 2.0 connection, to deliver impressive external audio capability that can instantly be swapped between systems, without having to open the computer case for installation.

Supporting analogue and digital audio for 2 to 7.1 channel audio applications, the external USB sound card provides a cost-saving upgrade from built-in/on-board sound that turns desktop/laptop sound into a home theatre-ready audio solution.

The external USB sound card features easy-to-use volume control and two external microphone inputs - a convenient solution for any audio application requiring high quality sound with multi-input capability with support for 44.1 KHz and 48 KHz sampling rates for analogue playback and recording or 48 KHz for SPDIF.

A more than suitable solution for home theatre, gaming or multi-media presentations, the External USB Sound Card is easy to install with plug and play support in Windows XP and Windows Vista operating systems.

Designed to deliver a long-lasting and dependable sound solution, the External USB Sound Card/Audio Adapter is backed by our 2-year warranty and free lifetime technical support.

Features & Benefits

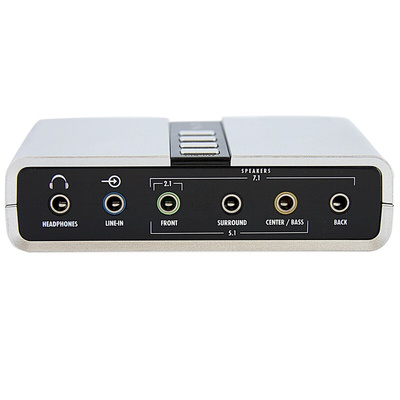

• Full 7.1 audio outputs via 3.5mm mini-jacks

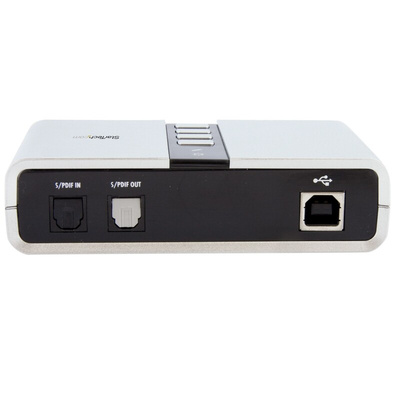

• Optical S/PDIF input (pass through) and output
• Dual microphone input
• Built-in volume control buttons
• Full-duplex recording and playback
• Supports 44.1 and 48 KHz sampling rates for analogue playback and recording or 48 KHz for SPDIF
• High Speed USB 2.0 compliant host interface, with transfer rates up to 480 Mbps
• Full 7.1 audio output support in a compact and portable external sound card
• Connect to external speakers through 3.5mm mini-jacks or optical S/PDIF
• Backed by a StarTech.com 2-year warranty and free lifetime technical support

Applications

• Add 7.1 audio support to laptop or small form factor system with no internal expansion options
• Replace or upgrade the existing integrated audio on a laptop or portable computer
• Connect your computer to an home theatre audio receiver through optical S/PDIF

What’s in the package?

• USB to Audio Adapter
• USB Cable
• Installation CD
• Instruction Manual

Note

The audio adapter’s SPDIF optical pass-through port supports two-channel audio, this port does not support 5.1 or 7.1 audio.
