PEXUSB3S2EI, StarTech.com 4 Port USB A PCIe USB 3.0 Card

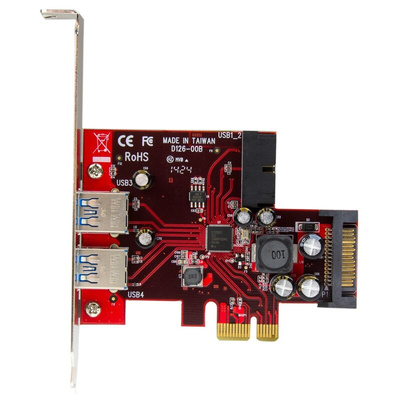

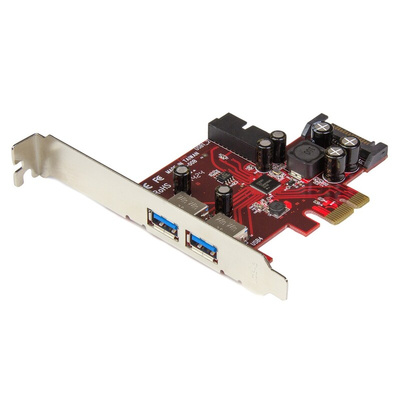

PEXUSB3S2EI PCI Express USB 3.0 Card

This PCI Express USB 3.0 card offers a cost-effective upgrade that lets you add four USB 3.0 ports to your computer through a PCIe slot. It offers two external ports plus two internal USB 3.0 headers to help adapt your desktop or server to support a variety of USB 3.0 devices.

Flexible and convenient port design

With extra motherboard-style USB 3.0 headers you have the flexibility to add more internal USB 3.0 devices to your PC. When your existing headers are occupied, you can connect front panel hubs or card readers using this versatile alternative to costly motherboard and computer upgrades.

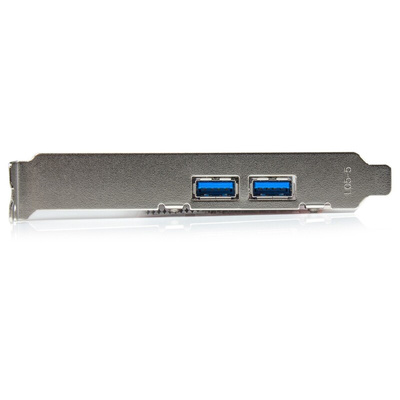

For added convenience, the card integrates two external USB 3.0 ports, so you can plug in more devices such as external hard drives or printers.

Simple installation and supports older devices

The USB 3.0 card is easy to install and requires no additional drivers or software in natively supported Windows® 8.1 / 8 operating systems. Plus, it features a dual profile design that fits in standard or low-profile cases, so you can rest assured it will fit in your small form-factor system if needed.

Connecting older peripherals isn't a problem either. So, there’s no need to purchase new devices since the adapter card is backward compatible with your USB 2.0 and 1.x technology.

Effective USB 3.0 performance enhanced by UASP

This high-performance SuperSpeed USB 3.0 card supports data transfer rates up to 5 Gbps and is enhanced with UASP support, which can perform ∼70% faster read speed and 40% faster write speed over traditional USB 3.0, when paired with a UASP-enabled enclosure.

The PEXUSB3S2EI is ruggedly built for reliable USB 3.0 device connections and is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Features & Benefits

• Transfer large files at lightning speed, with throughput support up to 5 Gbps
• Optional SATA power connector provides up to 900mA per port for high-power USB devices
• PCIe x1 interface, compliant with PCI Express 2.0 specifications
• Configured with full-profile bracket, half-height bracket included
• Flexibility to connect external and internal USB 3.0 devices and supports UASP
• Fast, hassle-free setup with Windows 8 native support, and fits into standard or low-profile systems
• Backward compatibility lets you save money and connect existing USB 2.0 and 1.x devices

Applications

• Install as a vital hardware component when building your own computer or when upgrading your case
• Connect external hard drives, tablets, smartphones, CD/DVD drives, MP3 players, printers, scanners, webcams and game controllers to your computer

What’s in the package?

• 4 Port PCI Express USB 3.0 Card - 2 Ext 2 Int
• Low-Profile Bracket
• Driver CD
• Instruction Manual

Note

UASP (USB Attached SCSI Protocol), is supported in Windows 8, 8.1, Server 2012 and Linux kernel 2.6.37 or later. Test results were obtained using an Intel® Ivy Bridge system, StarTech.com add-on USB 3.0 cards, a UASP-enabled StarTech.com enclosure, and a SATA III solid-state drive.

USB 3.0 Cards

PEXUSB3S2EI Datasheet
