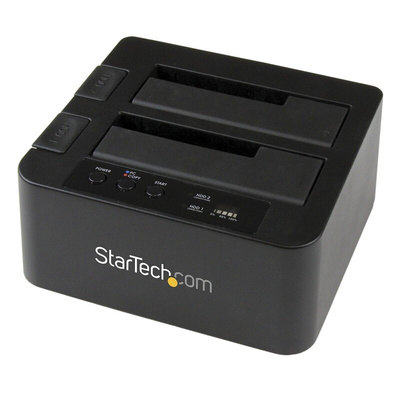

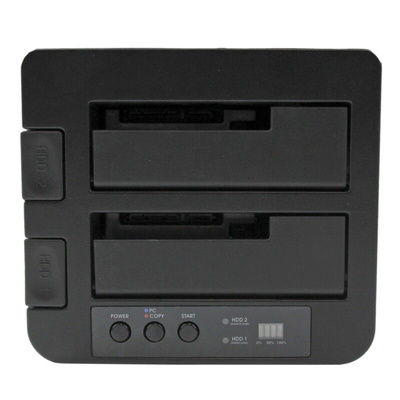

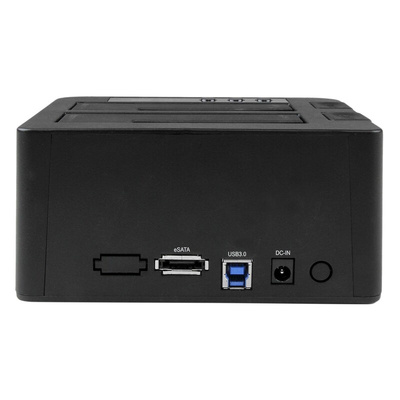

SDOCK2U33RE, StarTech.com Hard Drive Docking Station for 2 Drives SATA Hard Drive

SDOCK2U33RE eSATA Dock

The dual 2.5 / 3.5" SATA HDD / SSD duplicator dock lets you clone an existing hard drive without the use of a host computer system, or dock and swap drives from your desktop or laptop computer simultaneously, using a single USB or eSATA port.

As a hard drive duplicator, the dock lets you create an exact sector-by-sector clone from one hard drive to another, including partitions and boot sector information -- ensuring data integrity and consistency for sensitive operations, such as data recovery. As an external hard drive dock, it lets you connect your drives through either eSATA or USB, with each drive slot individually supporting high capacity 2.5 / 3.5" hard drives or solid-state drives, tested up to 4TB.

With support for SATA III (6Gbps) you can maximise efficiency with duplication speeds up to 22 GB per minute, and eSATA docking speeds up to 6Gbps. The dock can also be connected through USB 3.0 with UASP for transfer speeds up to 5Gbps, which is 70% faster than conventional USB 3.0.

With push-button operation and plug-and-play installation, the duplicator dock is specially designed for hassle-free operation. It lets you quickly dock your hard drives or start duplicating hard drives with the push of a button. Plus, the built-in LED progress bar saves you time by letting you easily monitor the entire duplication process, so you can better manage your time.

For added compatibility with different drive types in duplication and docking applications, the dock supports the use of various drive adapters. The following list of StarTech.com adapters are specifically tested to ensure compatibility with this drive duplicator:

2.5/3.5" IDE drives - SAT2IDEADP
mSATA drives - SAT2MSAT25
M.2 (NGFF) drives - SAT32M225
The SDOCK2U33RE is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Features & Benefits

• Standalone sector-by-sector hard drive duplication with speeds up to 22GB per minute
• Supports both 2.5" and 3.5" form factor hard drives (HDD) and solid state drives (SSD)
• eSATA and USB 3.0 host interface connections
• 1:1 hard drive duplicator and docking station
• Support SATA III (6 Gbps) and UASP for optimal performance
• Supports dual drive capacity up to 4 TB per slot (8 TB in total)
• Compatible with SATA revision I/II/III (1.5/3.0/6.0 Gbps) drives
• Compatible with USB 3.0/2.0/1.1 (5 Gbps / 480 Mbps / 1.5 Mbps)
• Dual bay, top slot-loading design with drive doors
• Create exact duplicates of your hard drives without having to connect to a computer
• Maximise performance, with file transfer speeds up to 6Gbps using eSATA or 5 Gbps using USB 3.0 with UASP
• Versatile connectivity options, through either USB or eSATA

What’s in the package?

• SATA HDD duplicator dock
• USB 3.0 cable
• eSATA cable
• universal power adapter (NA,UK,EU, ANZ)
• instruction manual

Compatible Drive Type

SATA

Interface

USB 3.0,eSATA

RAID

No

Hard Drive Duplicator Dock

SDOCK2U33RE Datasheet
