SDOCKU33BV, StarTech.com USB 3.0 Hard Drive Docking Station for 1 Drives SATA Hard Drive

SDOCKU33BV Hard Drive Docking Station

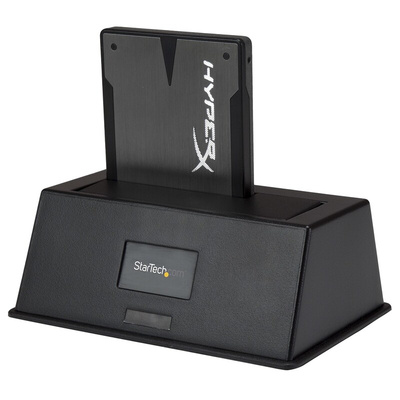

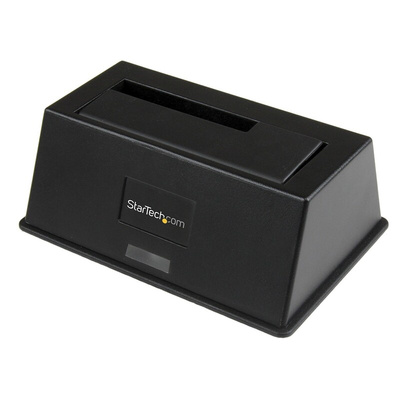

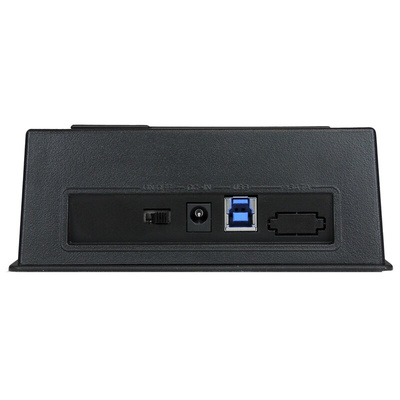

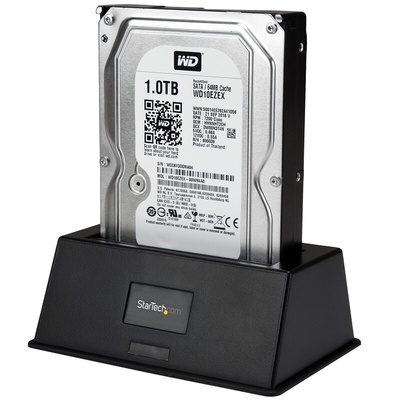

The SDOCKU33BV UASP-enabled USB 3.0 docking station makes it easy for you to connect and swap 2.5in or 3.5in SATA III hard drives (HDD) and solid state drives (SSD) through an available USB port. The dock performs up to 70% faster than conventional USB 3.0 when paired with a UASP-enabled host controller to utilize the full potential of your SATA III hard drives.

With support for large capacity SATA I/II/III drives (tested up to 4TB), and 2.5in or 3.5in drives this HDD/SSD docking station is compatible with virtually any SATA drive, and greatly increases the storage/backup capabilities of your computer.

Extend the value of this hard drive docking station further with the addition of our SATA to IDE Hard Drive Adapter (SAT2IDEADP), allowing easy insertion of any 2.5 or 3.5in IDE hard drive into a SATA hard drive dock.

To ensure compatibility with your computer system, the SDOCKU33BV supports all of the leading operating systems, including: Microsoft Windows® (8/7/Vista/XP/Server 2008/Server 2003), Apple® OSX (10.9/10.8/10.7/10.6), Linux, and Google Chrome OS™.

Improved Performance with UASP
UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.

At the same peak in testing UASP also shows an 80% reduction in required processor resources.

Testing results were obtained using an Intel® Ivy Bridge system, a UASP-enabled StarTech.com Enclosure, and a SATA III solid state drive.

The SDOCKU33BV is backed by a 2-year StarTech.com warranty and free lifetime technical support.

Features & Benefits

• Supports 2.5in and 3.5in form factor SATA hard drives (HDD) and solid state drives (SSD)
• UASP Support (Attached SCSI Protocol Specification Revision 1.0)
• Compatible with USB 3.0/2.0/1.1 (5 Gbps / 480 Mbps / 1.5 Mbps)
• Compatible with SATA revision I/II/III (1.5/3.0/6.0 Gbps) drives
• Plug-and-Play and Hot-Swap compatible
• Save time, with file transfers up to 70% faster than traditional USB 3.0 when used with a UASP-supported host
• Hassle-free access to drive data, with hot-swappable top slot-loading dock design that supports both 2.5in and 3.5in HDD/SSDs

Applications

• Add quick access to drives for data recovery or retrieval.
• Backup data quickly to an external data archiving
• Test or benchmark different hard drives and swap between them
• Quickly access drives for imaging

What’s in the package?

• USB 3.0 SATA hard drive docking station
• USB 3.0 Cable
• Universal power adapter: comes ready for NA/EU/UK only when you buy in NA/EU/UK
comes ready for Australia and New Zealand only when you buy in Australia and New Zealand
• Instruction Manual

Compatible Drive Type

SATA

Interface

USB 3.0

Hard Drive Docking Station

SDOCKU33BV Datasheet
