ST1000SMPEX, StarTech.com Startech 1 Port Mini PCI RJ45 Network Card, 10/100/1000Mbit/s, Сетевая карта

Supplied with

Full and Low Profile installation brackets

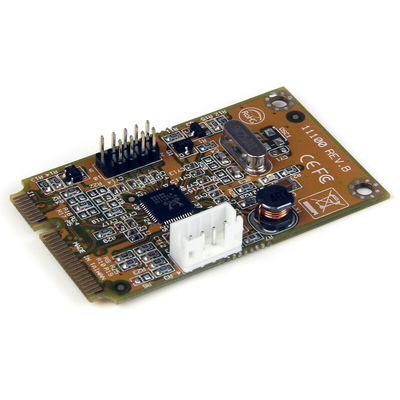

ST1000SMPEX Mini PCIe Card

The ST1000SMPEX Mini PCI Express Gigabit Network Adapter Card adds 1000Mbps network connectivity to a Mini PCI Express (PCI Express Mini Card, Mini PCIe) enabled computer system, such as Mini-ITX motherboards.
Supporting features such as NDIS5 checksum and large send offload for lower CPU utilization, Wake-on-LAN (WOL) and Remote Wake-up power management, jumbo frames and VLAN tagging, this Mini PCI Express Gigabit Adapter is ready to handle a wide variety of scenarios.
Perfect for small form factor or embedded systems that originally lack Gigabit networking capability, or for adding a network connection without taking up a full-sized PCI Express slots, this high quality Mini PCIe Network Adapter includes a low profile/half-height bracket for additional installation options.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Features & Benefits

• One 10/100/1000Mbps compatible RJ-45 Ethernet port
• Fully complaint with IEEE 802.3, 802.3u, and 802.3ab specifications for 10/100/1000 Mbps connections
• Jumbo Frame support up to 9k
• Crossover Detection &
Auto-Correction (Auto MDIX)
• IEEE 802.1Q VLAN Tagging support
• Supports Wake-on-LAN (WOL) and Remote Wake-up Support, Pair Swap/Polarity/Skew Correction
• Microsoft® NDIS5 Checksum Offload (IPv4, TCP, UDP) and Large Send Offload support
• Supports Full and Half duplex operating modes
• IEEE 802.3x Full Duplex Flow Control support
• Compliant with PCI Express Mini Card specification 1.1
• Includes Full and Low Profile installation brackets
• Full length mini PCI Express (PCI Express Mini Card, Mini PCIe) form factor fits in many Mini-ITX or embedded systems
• Built-in NDIS5 Checksum and Large Send Offload support and Jumbo Frames minimize system resource usage
• Backed by a StarTech.com 2-year warranty and free lifetime technical support

Applications

• Add a Gigabit networking port to a small form factor mini-ITX system with a mini PCI Express slot
• Add a Gigabit networking port to a Mini-ITX system through mini PCIe instead of taking up the full PCIe slot
• Replacement for a failed built-in Gigabit Ethernet port

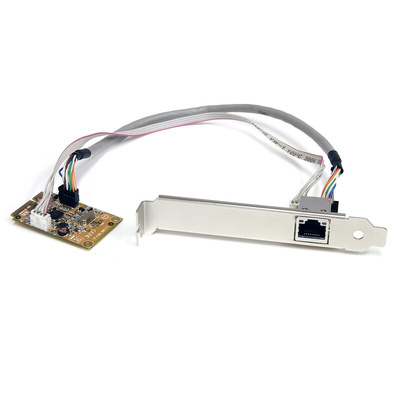

What’s in the package?

• Mini PCIe Card

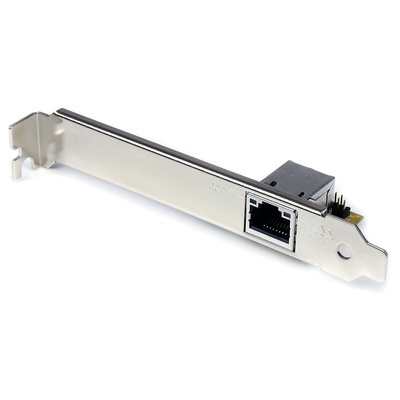

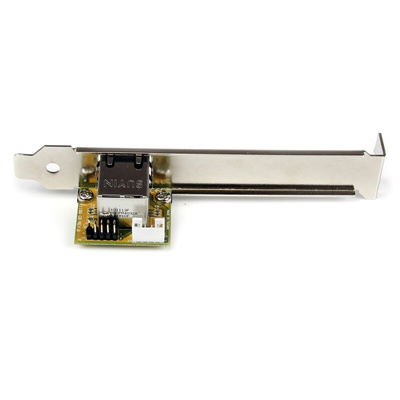

• RJ45 Daughter Board
• Low Profile Bracket
• Driver CD
• Instruction Manual

Network Adapter Cards

ST1000SMPEX Datasheet
