PEX100S, StarTech.com 1 Port PCIe RJ45 Network Card, 10/100Mbit/s, Сетевая карта

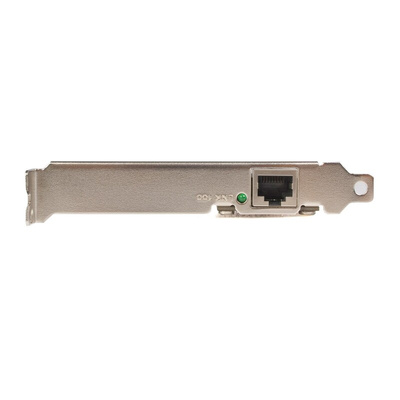

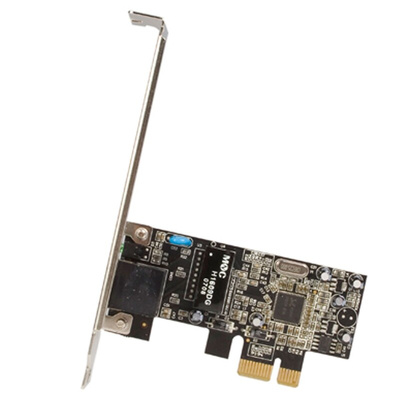

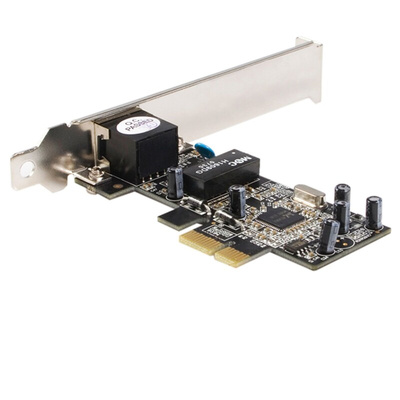

PEX100S PCIe Network Card

This PCI Express based 10/100 Ethernet Card provides a simple way to connect a PCIe enabled server or workstation to a 10/100 Ethernet network and offers a broad range of features and functions, including support for both Full and Half Duplex operation as well as Wake On LAN (WOL) Power Management.

The PEX100S Ethernet Card includes both standard and low profile brackets and is compatible with most mATX (Slim line) and ATX system form factors, and features Auto MDI/MDIX automatic configuration, which helps to simplify installation and configuration.

Features & Benefits

• Single 10/100Mbps RJ45 Ethernet port
• Compliant with IEEE802.3 CSMA/CD, 802.3 10Base-T and 100Base-TX standards
• Crossover Detection &
Auto-Correction (Auto-MDIX)
• Full and Half duplex mode support
• Link speed and duplex mode auto-negotiation
• Link/Activity and 10/100Mbps LED indicators
• Supports Wake-on-LAN
• Full/Low Profile installation brackets included
• Cost effective and simple Ethernet networking for a desktop computer systems
• Backed by a StarTech.com lifetime warranty and free lifetime technical support

Applications

• Replacement Ethernet card for a home or office desktop computer
• Adding Ethernet network connectivity for broadband Internet access to an old desktop computer
• Adding a second or redundant network connection for a workstation or server

What’s in the package?

• 10/100 PCI-Express Ethernet Card
• Low Profile Bracket
• Driver CD
• Instruction Manual

Network Adapter Cards

PEX100S Datasheet
