ST4000PEXPSE, StarTech.com Startech 4 Port PCIe RJ45 Network Card, 10/100/1000Mbit/s, Сетевая карта

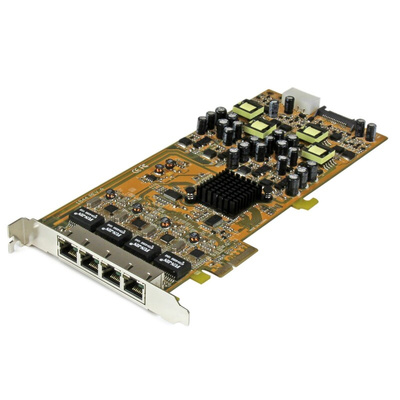

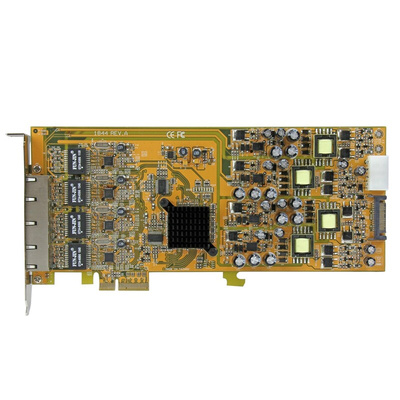

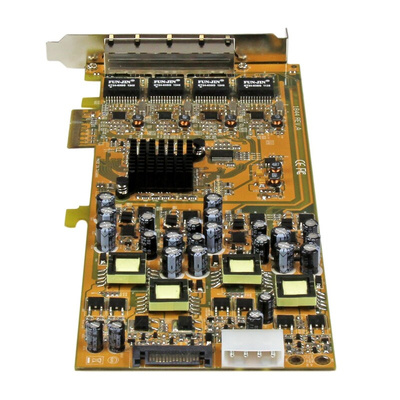

ST4000PEXPSE POE Card

The ST4000PEXPSE 4-Port PoE NIC lets you add four Gigabit Power over Ethernet ports through a single PCI Express slot. Each port can provide up to 25.5W of power, combining network data and power over a single Ethernet cable for reduced cable clutter and added convenience for remote PoE devices.

The PCI express PoE card supports the IEEE 802.3at (Type 1 and 2) standard for Power Sourcing Equipment (PSE), and can deliver up to 48V DC power to compliant Powered Devices (PD). This eliminates the need for a separate power source and data connection for PoE devices such as IP cameras, IP phones or wireless access points.

Suitable for any standard profile PCIe-enabled client, server or workstation, the PoE network card supports features such as Jumbo Frames (up to 9KB), VLAN tagging and Wake on LAN (WoL).

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Features & Benefits

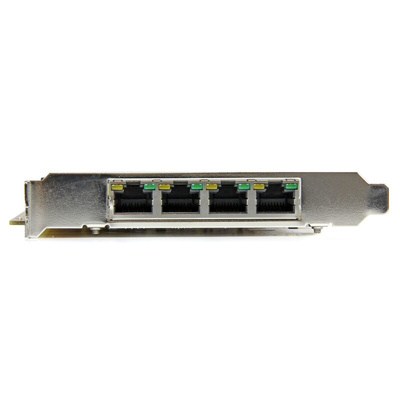

• Four 10/100/1000 Mbps compatible PoE RJ45 ports
• Fully compliant with IEEE 802.3at (Type 1 &
2) Power over Ethernet standards
• Power Sourcing Equipment (PSE) supports up to 48V, 25.5 Watts max. output per port
• Built-in SATA and LP4 Molex power connector
• Up to 9K Jumbo Frame support
• Wake-on-LAN (Remote Wake-up) support
• Supports Pair Swap, Polarity and Skew Correction
• Position your network devices where power outlets aren’t available, with 25.5 Watts per-port PoE output
• Reduce expenses by using existing standard Cat5 (or better) Ethernet cabling to deliver power and data
• Optimize network traffic with support for advanced features, like Jumbo Frames and VLAN tagging

Applications

• Create a host computer for networked security cameras situated in remote areas, where standard power connection is not possible
• Install PoE-powered Wireless Access Points (WAP) or repeaters in industrial, warehousing or business environments
• Enable remote installation of touchscreens or information kiosks

What’s in the package?

• PCI Express Network Card
• Driver CD
• Instruction Manual

Network Adapter Cards

ST4000PEXPSE Datasheet
