IES5102, Startech, 5 port Unmanaged Ethernet Switch, DIN Rail Mount No PoE, Коммутатор

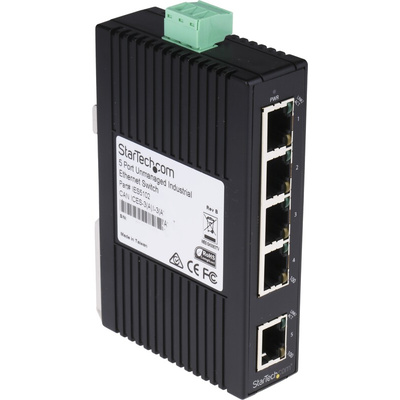

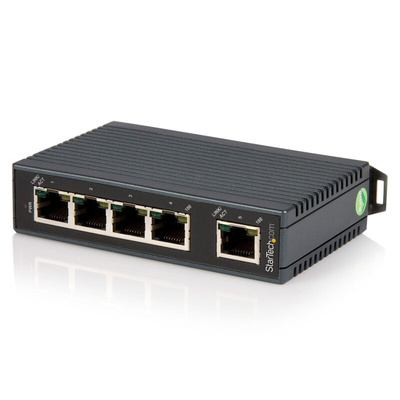

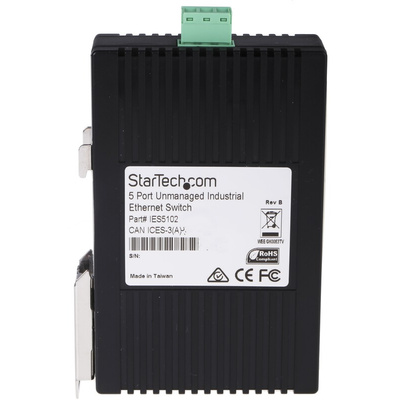

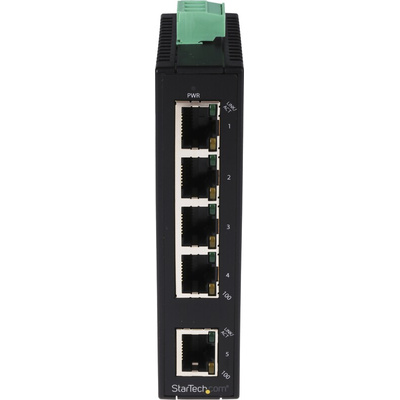

IES5102 Industrial Ethernet Switch

This compact 5-port industrial Ethernet switch is engineered to deliver fast, reliable network connectivity and durability in the most demanding industrial environments. It provides top performance in a wider range of operating temperatures than conventional network switches, making it ideal for factories and warehouses.

Conquer the tough demands of industrial environments

Designed with a rugged IP30-rated housing, the network switch delivers maximum performance even in harsh industrial conditions. Its wide-range terminal block input gives you the flexibility to power the switch as required, based on your own power input source, while its wide operating temperature range keeps your network running smoothly.

Get up and running in no time

This industrial Ethernet switch is easy to install, with an attached metal bracket for DIN rail mounting on equipment racks and cabinets.

Now you can eliminate the hassle of troubleshooting mismatched speed and duplex settings. This switch gives you full/half-duplex auto-negotiation and auto MDI/MDIX operation, enabling you to connect your network devices quickly and easily with little to no configuration required.

Reduce your energy costs with Energy-Efficient Ethernet

With lower overall power consumption, the Ethernet switch enhances your energy efficiency, in turn helping you reduce monthly costs.

The IES5102 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Features & Benefits

• Wider range of operating temperatures, ideal for industrial environments
• IEEE 802.3az Energy-Efficient Ethernet
• Supports 10BaseT/100BaseTX and Full-Duplex/Half-Duplex Auto-negotiation
• Supports IEEE 802.3x flow control and back pressure
• Store-and-forward switching mechanism
• Network up to 5 Ethernet devices, even in industrial settings, with a robust IP30-rated switch

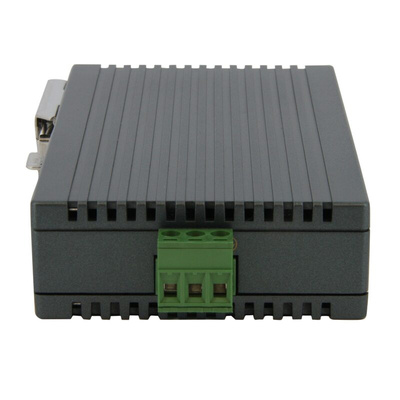

• Wide-range 12-48V DC terminal block input

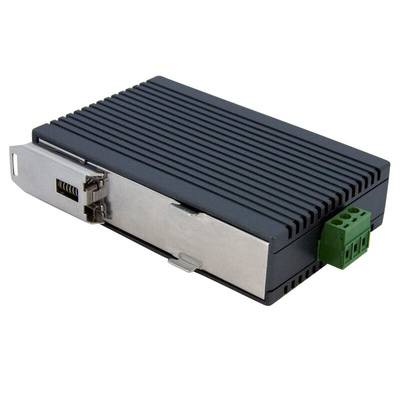

• Easy installation with an integrated DIN rail bracket

Applications

Well suited for networks in demanding industrial applications such as warehouses and factories
• A great way to enhance network connectivity, adding small workgroups to an existing network
• Install in a server rack or cabinet in a network room or test lab environment

What’s in the package?

• 5 Port Ethernet Switch (w/ Attached DIN Rail Bracket)
• Terminal Block

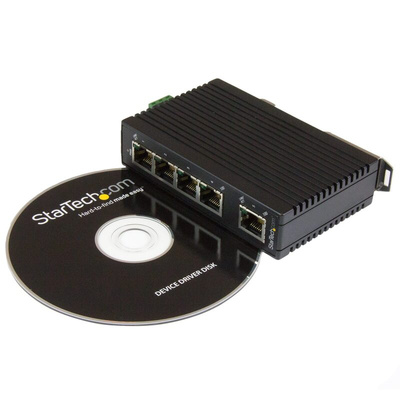

• Instruction Manual CD

Ethernet Switches

IES5102 Datasheet
