ET90110SM302, Startech 10/100Mbit/s RJ45, SC Single Mode Media Converter Half/Full Duplex 30km

1385597
Номер производителя: ET90110SM302Производитель: Startech
Цена за шт.
67704.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

ET90110SM302 Fibre Media Converter

The ET90110SM302 10/100 Mbps Single Mode Fibre Media Converter SC (30 km) lets you extend a Fast Ethernet network (10/100) over single mode fibre, at distances up to 30 km (18.6 miles).
A cost-effective solution for connecting a 10/100 Mbps Ethernet (10/100Base-T) network to remote network segments over a 100Base-FX fibre backbone, the media converter is designed to offer a durable and convenient Ethernet to fibre solution, with an all-steel chassis, and simple plug-and-play installation with minimal configuration required.
For added versatility, this fibre media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Features & Benefits

• Supports standalone operation, or installation into the ETCHS2U Rackmount Chassis
• Cost-effective way to extend/bridge networks using fibre cabling
• Advanced features include Link-loss forwarding, remote status monitoring, two frame lengths
• Maximum Fibre Cable length of 30 km
• Supports full or half-duplex operation
• Easy to use and install
• Link loss forwarding, remote monitoring of status ensures maximum up-time
• Provides Ethernet to Fibre conversion as a standalone device, or can be installed into the ETCHS2U 20 slot chassis for added versatility
• Rugged steel casing for durability in harsh environments

Applications

• Provides connectivity to a user or network segment that is in an isolated area of a large complex or in another building altogether
• Perfect for secured environments required by government agencies, where EMI is not acceptable
• Connect traffic control/monitoring systems at extreme distances to the main office
• Extend network connectivity to remote areas of stadiums, auditoriums or other venues
• Converts 100Base-FX fibre optic signals to 10/100Base-T Ethernet over single mode fibre cable

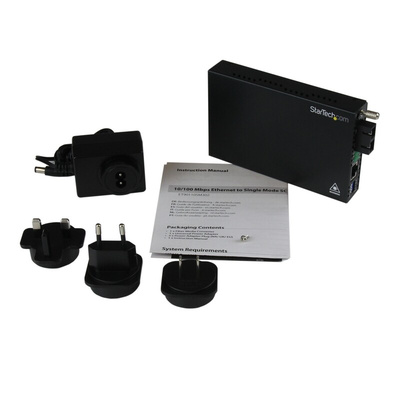

What’s in the package?

• Fibre Media Converter
• Universal power adapter: comes ready for NA/EU/UK only when you buy in NA/EU/UK
comes ready for Australia and New Zealand only when you buy in Australia and New Zealand
• Grounding Screw
• Instruction Manual

Fiber Media Converters

Техническая спецификация
pdfET90110SM302 Datasheet
Максимальная скорость передачи данных:
2000Мбит/с
Максимальное расстояние передачи:
30km
Порт для подключения:
RJ45, SC
Режим работы волокна:
Half/Full Duplex
Скорость сети:
10/100Мбит/с
Тип волокна:
Single Mode
