TR610 top 2 120V UL, Theben / Timeguard 1 Channel Digital DIN Rail Time Switch Measures Days, Hours, Minutes, Seconds, 120 V ac

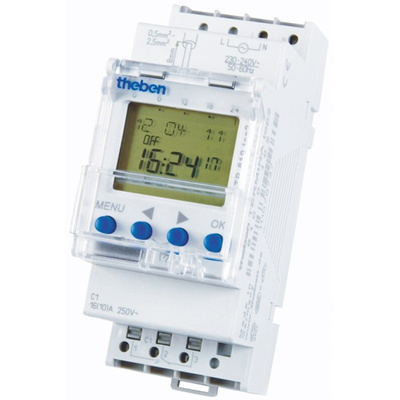

Weekly Timeswitch- TR610 Top 2

TR 610 top 2 digital time switches with weekly programming.

Features and Benefits

1 Channel
DuoFix spring terminals for 2 conductors each
Text-orientated user guidance in display
- Preset date and time
- Fully operable without mains connection
56 Memory locations
Interface for OBELISK top2 memory card (PC programming)
- 2 insertable switching programs
- Copying programs
- Storing programs
10-Year power reserve (lithium battery)
Zero-cross switching for relay-saving switching and high lamp loads (not with 24 V devices)
On-Off switching times
Switching preselection
Permanent switching ON/OFF
Integrated operating hour counter with reset option and service function for monitoring maintenance intervals
Holiday program
Display back light (can be turned off)
PIN coding
Automatic summer/winter time changeover
- Can be deactivated
- Date rule options are already stored for Europe, USA and other countries
- Own data rule options or changeover around set dates are available

Remotely Programmable

Datasheet
