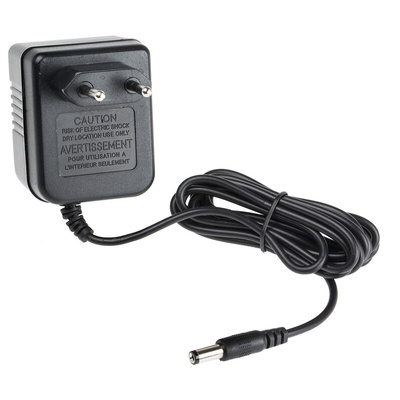

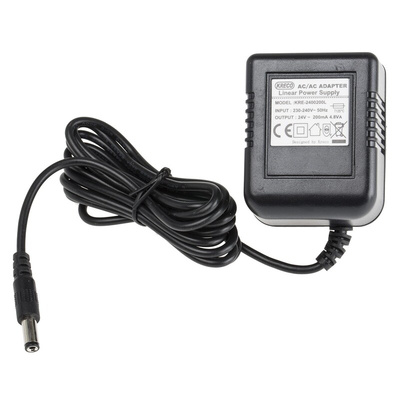

RS PRO 5W Plug-In AC/DC Adapter 24V ac Output, 200mA Output

RS PRO 5 W Plug In Power Supply, 24 V AC, 200 mA, 1 Output Linear Power Supply, Type C

This linear power supply from RS PRO is a 5 W AC-AC adapter used to power appliances such as lamps, radios and fans. It's fitted with a Type C mains plug, which means it can be used in the EU.
The unit has a thermal cut-off to reduce the risk of damage to any connected equipment. It also has an output voltage of 24 V AC so it's suitable for most small power applications.
The product comes with a 1.8-metre cable for extra flexibility when finding a mains socket. As part of our trusted RS PRO range, it's been tested by engineers to ensure its reliability and quality.

Features and Benefits

• Input voltage of 230 to 240 V AC
• Frequency range of 50 to 60 Hz
• 2.1 x 5.5 x 12 mm centre positive output connector
• Output current of 200 mA
• Maximum input current of 45 mA
• Operating temperature of -20°C to +40°C
• Mean time between failures (MTBF) of 50 k hours
• Ripple and noise of 100 mV
• Dimensions of 62 mm (L) x 51 mm (W) x 42 mm (D)
• Weight of 230 g
• Single output
• Line and load regulation of ±1%
• Not medically approved
