RS PRO 8W Plug-In AC/AC Adapter 9V ac Output, 950mA Output

RS PRO 9V AC/AC Euro Adaptor Plug with 2.1 x 5.5mm Barrel Plug Output (8W)

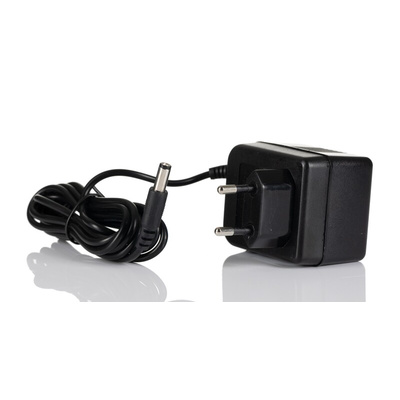

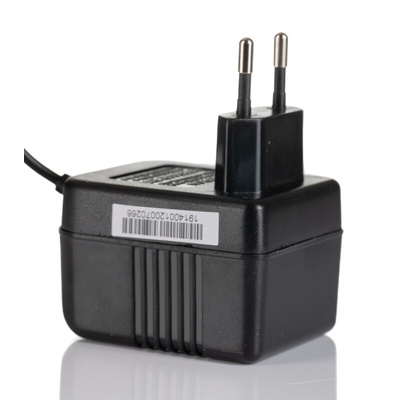

A hardwearing and high performing AC/AC adaptor plug fitted with a 2.1 x 5.5mm Barrel Plug on one end and a 2 Pin Euro plug on the other.
The RS PRO 9V DC power supply unit meets Insulation Class System B meaning that the insulating parts of the plug can be exposed to temperatures of up to 130°C. The AC adapter features a flammability rating of UL 94V-0 dictating that the plastic parts of the unit will not burn for more than 10 seconds when exposed to flames and the housing is constructed from Polysulfone (PSU) for an impact and heat resistant plug creating a highly efficient, safe and reliable AC/AC adaptor
The AC/AC power supply unit is suitable for use in a wide range of applications and appliances and its compact size makes it perfect to keep in your bag or suitcase for when you need it.

Features and Benefits

Compact AC to AC adaptor
2 Pin Euro Plug

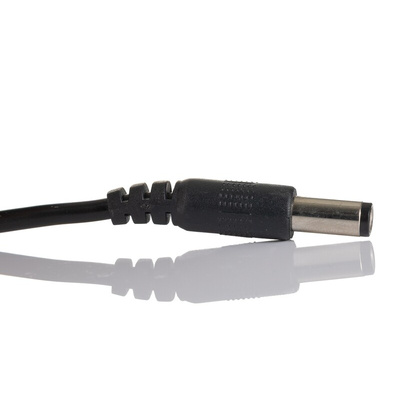

2.1 x 5.5mm Barrel Plug
Insulation Class System B
Input voltage of 230/240V (50/60Hz)
Output voltage of 9V
Maximum output current of 950mA
Very low-ripple and noise
Lead length of 1.75m

Approvals and Standards: CE, EN61558, IEC61000-4-2/ESD, IEC61000-4-3, IEC61000-4-4/EFT, IEC61000-4-5/SURGE, IEC61000-4-6/CS

What is a Plug-in AC-AC Adapter?

Plug in AC-AC adapters are also known as AC Adaptors or AC-AC converters and are a type of external power supply. Some electrical appliances require a power supply that differs from the mains voltage supplied. This is where an AC adapter is used.
