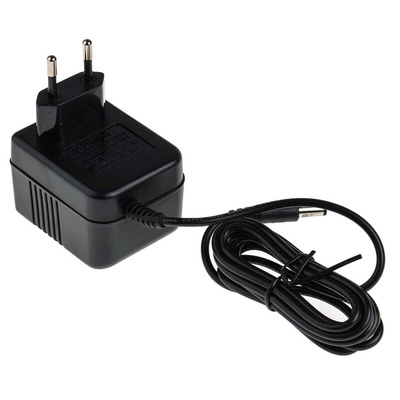

RS PRO 9W Plug-In AC/DC Adapter 12V ac Output, 700mA Output

RS PRO, 9 W Plug-In Power Supply 12 V AC, 700 mA, 1 Output Linear Power Supply, Type C

The RS PRO wall-mount adaptor is a highly reliable plug-in power supply approved for medical applications. In cases where power is needed quickly, this adaptor is light and easy to connect.

The plug has a universal adaptor and meets the required global safety standards. It's fitted with an LED indicator that show when it’s on and alert you if a power fault has occurred. It also has a flammability rating of UL94V-0, with fire resistance certified by Underwriters Laboratories, a worldwide safety certification company. The unit features a thermal shutdown capability, protecting it from damage if overheating occurs, and includes short-circuit, overload and over-voltage protection. It has a high MTBF (mean time between failure) and offers a long service life.

The component’s highly efficient energy consumption meets US Energy tart/CEC/AS/MEPS/EUP/ERP requirements and it carries the RS PRO seal of approval, guaranteeing quality and performance.

Features and Benefits

• Linear plug-in power supply
• Type C plug
• MTBF of 50 kh
• Power signal conversion type of AC-AC
• Load regulation of ± 5%
• Output current of 700 mA
• Cable length of 1.8 m
• One output
• Output voltage of 12 V AC
• Not medically approved (Query no 27 on Master tracker)
• Power rating of 9 W
• Line regulation of ± 1%
• Input voltage of 230 V AC, 240 V AC
• Input frequency of 50 Hz to 60 Hz
• Output connector of 2.1 mm x 5.5 mm x 12 mm centre positive
• EU plug input connector
• Maximum input current of 67 mA
• Operating temperature range of -20°C to +40°C
• Dimensions of 62 mm x 51 mm x 42 mm
• CB (TUV-SUD) +LVD:IEC/EN6060 (low voltage appliance directive) approved
• Adaptor meets EN61558 IEC61000-4-2/ESD IEC61000-4-3 IEC61000-4-4/EFT IEC61000-4-5/SURGE IEC61000-4-6/CS safety approvals
• RoHS (Restriction of Hazardous Substances) compliant

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Approvals

CB（TUV-SUD）+LVD:IEC/EN6060

RS PRO Datasheet
