RS PRO 20W Plug-In AC/AC Adapter 12V ac Output, 1.6A Output

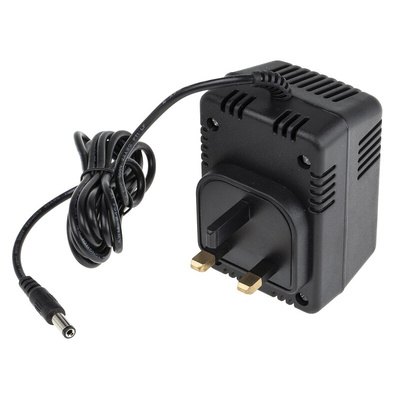

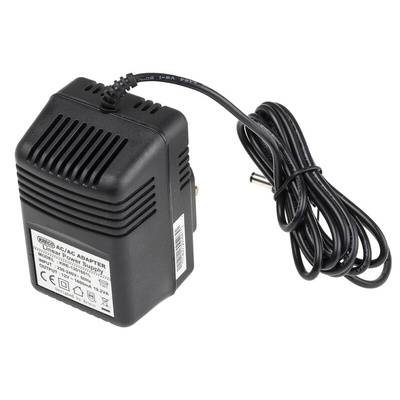

RS PRO 20 W Plug-In Power Supply, AC/AC Adapter

Connect your chargeable devices to a mains power supply with this AC/AC (alternating current) adapter from RS PRO. This 3-pin UK adapter transmits AC from the mains power outlet to your devices at a current rating of 1.6 A, making it suitable for use with a variety of devices.
The plug has a mean time between failures (MTBF) of 50,000 hours, so it will last a long time. A three-year warranty means you can rest assured of this product's quality and reliability.

Features and Benefits

• Cable length of 1.8 m


• Dimensions of 87.2 (length) x 56.5 (width) x 57 mm (depth)


• Energy efficiency level IV


• UK plug input connector


• Input frequency range of 50 to 60 Hz


• Input voltage of 230 V AC, 240 V AC


• Line regulation of ±1%


• Load regulation of ±5%


• Maximum input current of 130 mA


• Operating temperature range of -20°C to +40°C


• Not approved for medical use


• MTBF (mean time between failures) of 50,000 hours


• One output


• Centre-positive output connector size of 2.1 x 5.5 x 12 mm


• Output current of 1.6 A


• Output voltage of 12 V AC


• UK plug type


• Power rating of 20 W


• Ripple and noise of 100 mV


• AC/AC adapter type


• Weight of 535 g
