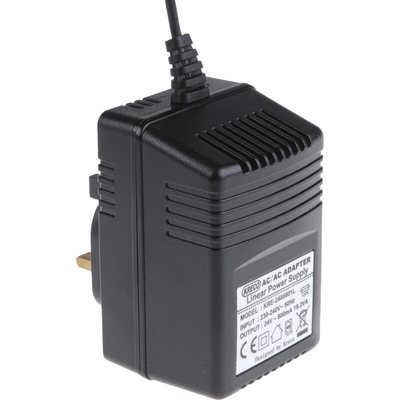

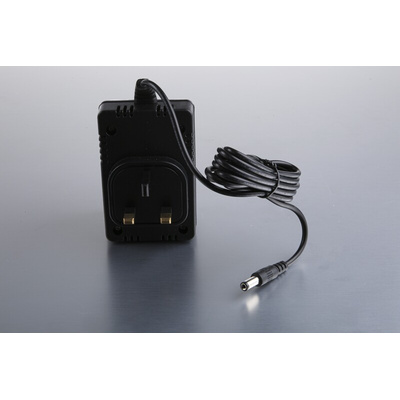

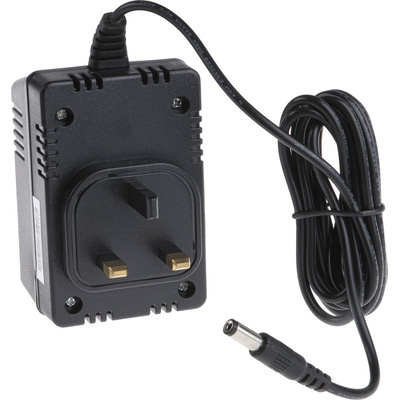

RS PRO 20W Plug-In AC/DC Adapter 24V ac Output, 800mA Output

RS PRO, 20 W Plug In Power Supply 24 V AC, 800 mA, Level IV Efficiency, 1 Output Linear Power Supply, Type G

This power supply from RS PRO provides 20 W of continuous current to charge your electrical devices from the mains. For greater energy savings, it uses under 0.5 W of power when the connected device is off.
The adapter has a Type G plug, suitable for use in the UK and Ireland. There's also short-circuit protection and a thermal cut-off to reduce the risk of damage to connected equipment.
As part of the RS PRO range, this power supply is tested to ensure quality and durability. It's suitable for use with fans, toys and LED lamps.

Features and Benefits

• Input voltage range of 230 to 240 V AC
• AC-AC conversion
• Cable length of 1.8 m
• Dimensions of 87.2 (L) x 56.5 (W) x 57 mm (D)
• Operating temperature of -20°C to +40°C

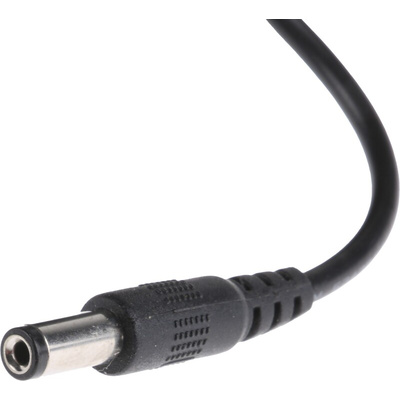

• 2.1 x 5.5 x 12 mm centre positive output connector
• Output current of 800 mA
• Maximum input current of 130 mA
• Output voltage of 24 V AC
• Input frequency range of 50 to 60 Hz
• Line regulation of ±1%
• Load regulation of ± 5%
• Ripple and noise of 100 mV
• Weight of 535 g
• Mean time between failures (MTBF) of 50000 hours
• Not medically approved

RS PRO Datasheet
