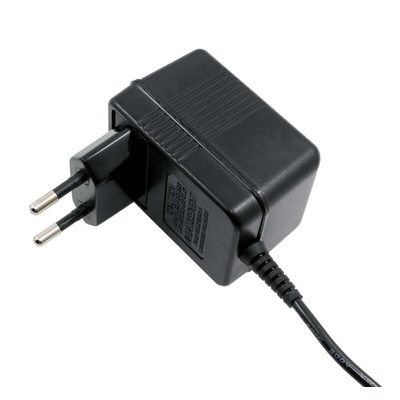

RS PRO, 3W Plug In Power Supply 12V dc, 250mA, Level IV Efficiency, 1 Output Linear Power Supply, Type C

RS Pro 3W Linear Power Supply with universal input

Features

High-efficiency
High-reliability
Low-temperature
Light and convenient plug in

Power: 3W
Input voltages: 100V-240VAC
Input frequency: 50 or 60Hz
Input current: 200mA (maximum)
Output voltage: 12V DC optional
Output current: 250mA (maximum)
Customized designs are accepted
Design time: 2 days (maximum)
No load input power (240V AC): non-CEC
Output voltage precision: 5%
Ripple and noise: 100mV
Regulation: ±1% line, ±5% load

Applications

CCTVs, securities, antennas, fans, radios, videos, toys, aquariums, desk lamps, LED lamps

Approvals

EN61558-2-6
EN60950: 2009, EN60065
PSE IEC60950, EN60065
UL1310, GB4943-2001
CE (low-voltage Directive)
AS/NZS 60950: 2000 and AS/NZS60065

Emission and immunity

EN55024/A1:2001
FCC parts 15 class B
IEC61000-4-11/-6/5/4/3/2
GB9254-1998/GB17625.1-2003
EN55022 class B
CISPR22 class B
CNS13438 class B
AS/NZS3548, AS/NZS4251.1 class B

RS PRO Datasheet
