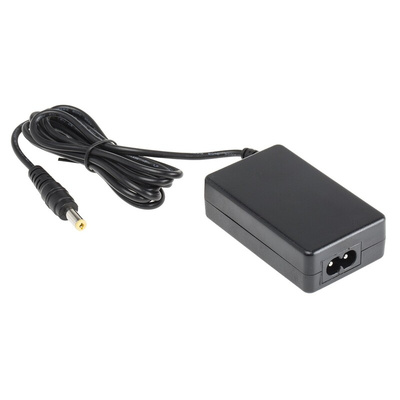

RS PRO 12.5W Plug-In AC/DC Adapter 5V dc Output, 2.5A Output, Блок питания

RS PRO 5 V DC Power Supply, 12.5 W, 2.5 A

This switch-mode unit from our trusted RS PRO range converts mains-supplied AC to DC. It uses its 5 V output of direct current to charge and run battery-operated devices, such as laptops and computers. This one-output component has overcurrent and overvoltage protection to prevent short-circuits or current overloads from damaging your device and to keep you safe.
You'll find this compact and lightweight product in military contexts. The unit is compliant with RoHS (Restriction of Hazardous Substances) standards meaning it contains only minimal levels of harmful materials. It's also environmentally friendly with a high Energy Efficiency rating of Level V, meeting US energy efficiency requirements for external power supplies.

Features and Benefits

• IEC 320-C8 input connector
• Input frequency of 47 to 63 Hz
• Input voltage of 90 to 264 V AC
• Not medically approved
• Maximum input current of 50 A
• Operating temperature range of -20ºC to +40ºC
• Mean time between failure (MTBF) of 50000 h
• Output current of 2.5 A
• Dimensions of 97 (L) x 45 (W) x 31 mm (D)
• Ripple and noise of 150 mV
• Weight of 145 g
• Cable length of 1.5 m
• Output power of 12.5 W
• Desktop mounting type
