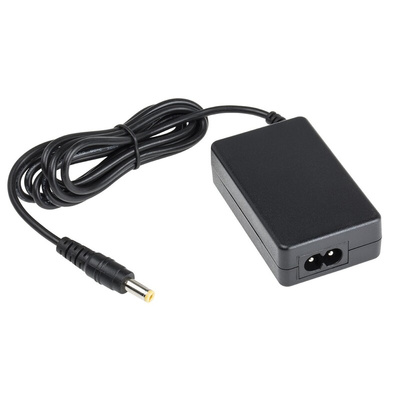

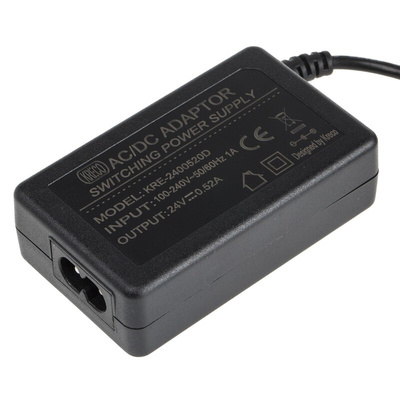

RS PRO 12.5W Plug-In AC/DC Adapter 24V dc Output, 520mA Output, Блок питания

RS Pro 12.5 W power supply

High reliability
With fuse, LED light indicator
Low working temperature and low ripple noise
Lightweight and convenient plug-in
High efficiency: consumption, meet US Energy start/CEC/AS/MEPS/EUP/ERP
Power: 12.5W
DC output voltages: 24V DC
DC output current: 520mA
Output voltage precision: 5%
Ripple and noise: 100mV
Regulation: ±1% line, ±5% load
Efficiency level: VI
DC output cord AWG: 18AWG, normal
Wire length: 2.05m

Applications: printer, POS machine, consumer product, electronic products
Input voltages: 100 to 240V AC
Input frequency range: 50/60Hz
input current: 4A maximum
No load input power (240V AC): 0.3W
Inrush current (240V AC): 30A cold 25°C
Efficiency: 88% minimum
Short-circuit protection (SCP)
Over-load protection (OLP)
Over-voltage protection (OVP)
Over-current protection (OCP)
Over temperature protection (OTP)
Thermal shutdown capability (auto recovery)
