RS PRO 48W Plug-In AC/DC Adapter 24V dc Output, 2A Output, Блок питания

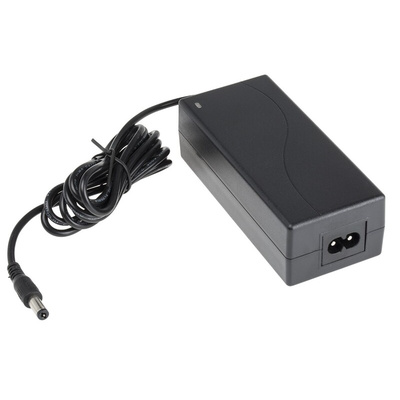

RS PRO 24 V DC Power Supply, 48 W, 2 A

This compact switch-mode power supply (SMPS) from RS PRO safely converts your mains-supplied AC power to use with electronic devices taking a DC current. It comes with a centre positive output connection, making it ideal for CCTV systems, laptops and LED lighting solutions.
As it's supplied with a long lead length of 1.5 m, you can connect your devices in hard-to-access areas with ease. The power supply is also equipped with short-circuit protection and automatically turns off in case of a faulty wire connection.
This unit has been tested under 100% load conditions to guarantee reliable performance. It complies with US Energy Efficiency Level IV, so it consumes less than 0.100 W of electricity when plugged in but turned off.

Features and Benefits

• Output voltage of 24 V DC
• Dimensions of 116 (L) x 52 (W) x 35 mm (D)
• IEC 320-C8 input connector
• Single output
• Not medically approved
• Input voltage range of 90 to 264 V AC
• Maximum input current of 50 A
• Frequency range of 47 to 63 Hz
• Operating temperature range of -20°C to +40°C
• Desktop mounting
• Output current range of 2 A
• Output power or 48 W
• Ripple and noise of 150 mV
• Weight of 240 g
