ROE-0512S, Recom ROE DC-DC Converter, 12V dc/ 84mA Output, 4.5 → 5.5 V dc Input, 1W, Through Hole, +85°C Max Temp -40°C Min, Преобразователь

Recom ROE Series 1W DC-DC Converter

The ROE DC-DC converters are typically used in general purpose power isolation and voltage matching applications, and feature a full industrial operating temperature range of -40°C to +85°C
without derating. 3 year warranty

Features and Benefits

• Low Cost 1W Converter
• Industry Standard Pinout
• SIP4 Package
• 1kVDC Isolation
• Efficiency up to 80%
• Wide Operating Temperature Range -40°C to +85°C
• UL60950-1 Certified

RECOM DC-DC Converter, 470mF Maximum Capacitive Load, 80% Efficiency - ROE Series - ROE-0512S

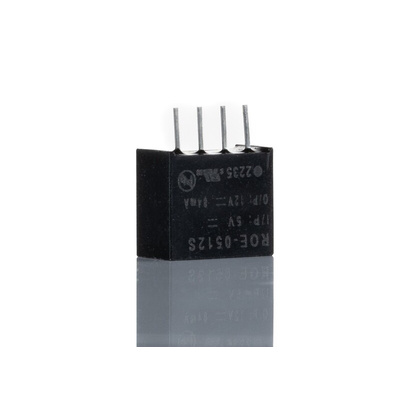

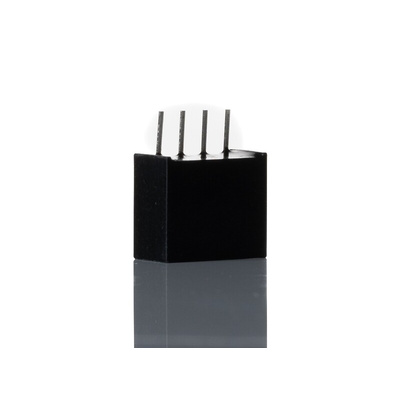

Choose this DC-DC converter from RECOM to step up and deliver a steady power supply to your PCB-linked components. It boosts and smooths 5V input voltages to a noiseless 12V output that's just what devices such as battery chargers need. Thanks to 1kV DC isolation, it creates a barrier between the input and the output, ensuring that sudden power surges don't pass through and cause an upset. As it's housed in a non-conductive plastic case, you don't have to worry about any shocking surprises when installing or operating this converter.

Features & Benefits

• Compact dimensions of 11.5 (L) x 6 (W) x 10mm (H) for space-efficient installation in confined setups
• Stops burning in 10 seconds or less in the event of a fire, making it a safe choice in sensitive settings
• 84mA output current for use in low-power applications

Applications

• Electrical workshops
• Mobile devices
• Material handling equipment

What's the temperature tolerance of this DC-DC converter?

This piece of kit functions optimally in a temperature range between -40°C and +85°C, so it's a versatile choice for use in harsh conditions.

ROE Datasheet
