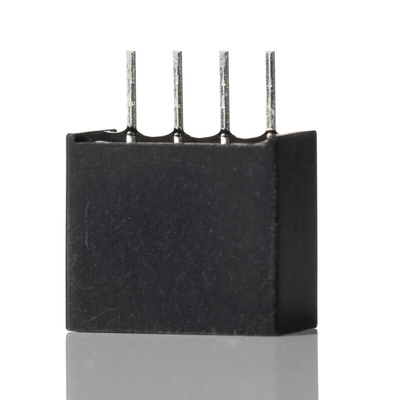

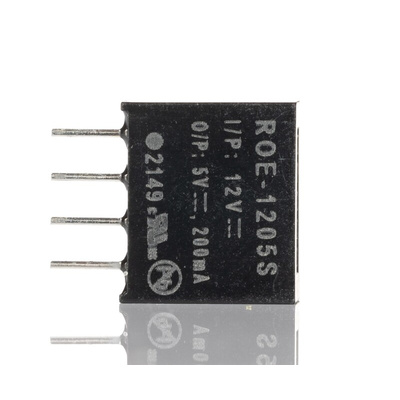

ROE-1205S, Recom ROE DC-DC Converter, 5V dc/ 200mA Output, 10.8 → 13.2 V dc Input, 1W, Through Hole, +85°C Max Temp -40°C, Преобразователь

Recom ROE Series 1W DC-DC Converter

The ROE DC-DC converters are typically used in general purpose power isolation and voltage matching applications, and feature a full industrial operating temperature range of -40°C to +85°C
without derating. 3 year warranty

Features and Benefits

• Low Cost 1W Converter
• Industry Standard Pinout
• SIP4 Package
• 1kVDC Isolation
• Efficiency up to 80%
• Wide Operating Temperature Range -40°C to +85°C
• UL60950-1 Certified

RECOM DC-DC Converter, 80% Efficiency, 1kV DC Isolation Voltage - ROE Series - ROE-1205S

Avoid the risk of over-powering your electronic devices with this DC-DC converter from RECOM. It converts a 12V DC input into a smooth 5V DC output, so you can be sure your power supply's constant. When operating at an ambient temperature of approximately +25°C, the unit has a mean time between failures of over 20 million hours, so there's no doubting its reliability. An isolation voltage of 1kV DC helps to put a stop to power spikes causing damage to your equipment.

Features & Benefits

• Industry-standard pin-outs reduce the chance of getting your wires crossed
• Vibration-resistant for safe use with heavy-duty applications
• Broad operating temperature range between -40°C and +85°C to withstand hazardous industrial settings
• Through-hole mounting makes installation quick and simple
• Power output of 1W for energy efficiency

Applications

• Data centres
• Automotive production
• Aerospace industry
• Pharmaceutical manufacturing

What material is this converter's housing made from?

The component has a plastic housing with non-conductive properties to reduce the risk of electric shocks. Its casing is also flame-retardant, so it won't contribute to the spread of a workplace fire.

ROE Datasheet
