R-78B3.3-2.0, Recom Switching Regulator, Through Hole, 3.3V dc Output Voltage, 4.75 → 32V dc Input Voltage, 2A Output Current,, Импульсные стабилизаторы

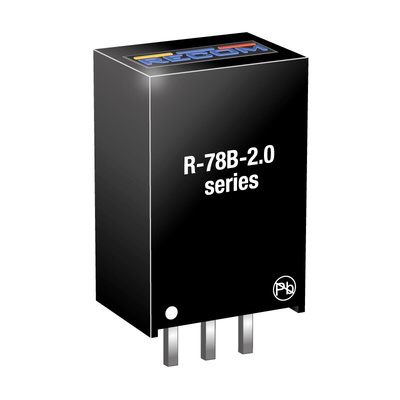

R78Bxx 2.0 Series Switching Regulator

The Recom R-78Bxx series are highly efficient, non-isolated switching regulators. They offer a high-quality product at a low cost in production quantity. They are ideally suited to replace 78xx linear regulators, as well as being pin compatible.

The convertor has a high-voltage input range and there is no need for heat sinks, due to little energy being wasted. It has a wide input range with continuous short circuit protection and no external components are needed to work efficiently.

Features and Benefits

• Wide operating temperature of -40 to +70 °C at full load
• Pin compatible with TO220 linear regulators
• High efficiency, non-isolated, no need for heatsinks
• Requires no external components
• Continuous short circuit protection
• Low ripple and noise
• Compact size, ensuring space saving
• Positive to negative converter

RECOM Switching Regulator, Vibration-Resistant, 6.6W Power Rating - R-78B-2.0 Series - R-78B3.3-2.0

If your circuit's receiving excess current, take it down a notch with this switching regulator from RECOM. The unit steps down a wide input voltage range between 4.75 and 32V DC to a safe output level of 3.3V DC. Need to mount it? The soldering pins mean you can attach it to the underside of your board in a flash. Thanks to its built-in resistance to vibration, you can count on this unit to hold firm when things get shaky.

Features & Benefits

• Pin-compatible with TO220 linear regulators for use with legacy devices
• Built-in short-circuit and over-temperature protection for durability in harsh conditions
• Low ripple and noise of 50mV Pk-Pk for minimal signal disruption
• Efficiency rating of 92% reduces heat waste, eliminating the need for a heatsink

Applications

• HVAC systems
• Digital cameras
• Computer peripherals
• Telecommunications

How fast is this regulator?

With a startup time of 10ms, you can rest assured that this regulator will quickly rise to the challenge of balancing power in your circuit.

How long will this regulator last?

Thanks to its mean time between failures of 6,349,000 hours, you can rely on this regulator for a long time without it breaking down.
