ROE-1505S, Recom ROE DC-DC Converter, 5V dc/ 200mA Output, 13.5 → 16.5 V dc Input, 1W, Through Hole, +85°C Max Temp -40°C, Преобразователь

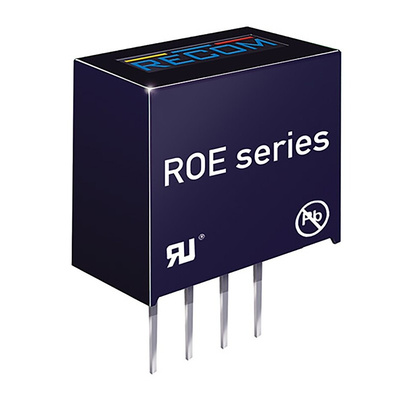

Recom ROE Series 1W DC-DC Converter

The ROE DC-DC converters are typically used in general purpose power isolation and voltage matching applications, and feature a full industrial operating temperature range of -40°C to +85°C
without derating. 3 year warranty

Features and Benefits

• Low Cost 1W Converter
• Industry Standard Pinout
• SIP4 Package
• 1kVDC Isolation
• Efficiency up to 80%
• Wide Operating Temperature Range -40°C to +85°C
• UL60950-1 Certified

RECOM DC-DC Converter, 1 Output, 1kV DC Isolation Voltage - ROE Series - ROE-1505S

Step down your industrial equipment's supply voltage with this DC-DC converter from RECOM. It adjusts an input of 15V DC into an output of 5V DC, which makes it easy to hook-up different circuits in your machinery. The unit is isolated, so it separates its output from possible dangerous voltages on the input side. Plastic housing resists corrosion, making the device compatible with humid operating conditions. For safety, this casing is self-extinguishing, so there's minimal risk of it contributing to a fire.

Features & Benefits

• Compatible with demanding settings, thanks to a broad operating temperature range between -40°C and +85°C
• Efficiency of 79% indicates minimal power loss during the stepping-down process
• Compact dimensions of 11.5 (L) x 6 (W) x 10mm (D) for maximum packing efficiency on your circuit board
• Industry-standard pinouts for easy wiring to a power supply

Applications

• Consumer electronics
• Telecommunications equipment
• Industrial machinery

How many outputs does this converter have?

This DC-DC converter is a straightforward option with one output.

Is this converter regulated?

No, this is an unregulated converter, so it's useful for applications that don't need a steady voltage such as outdoor irrigation systems.

ROE Datasheet
