REC6A-2405SW/H2, Recom REC6A DC-DC Converter, 5V dc/ 1.2A Output, 18 → 36 V dc Input, 6W, Through Hole, +65°C Max Temp -40°C Min, Преобразователь

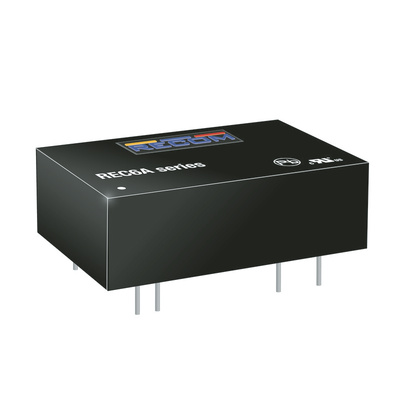

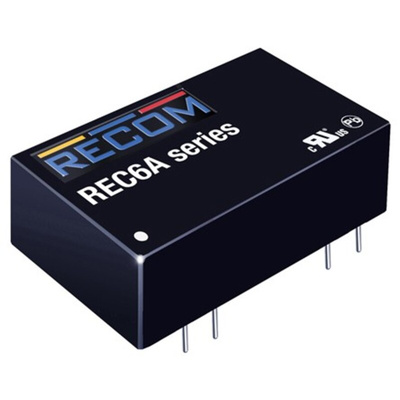

Recom REC6A Series 6W DC-DC Converter

The Recom REC6A Series is a cost effective, general purpose isolated DC-DC converter containing a built-in Class A EMC filter. The converter is designed to run from industry standard 24 V or 5 V unregulated supplies and is typically used to provide an isolated, regulated, short circuit protected output. Under Voltage Lockout is available as an option. The REC6A converters are designed for industrial applications, are able to drive high capacitive laods and operate over the full -40 °C to +65 °C temperature range without derating. 3 year warranty available.

Features and Benefits

• 2:1 Input Range Voltage
• Efficiency up to 80%
• EMI Class A without external components
• Continuous Short Circuit Protection
• No Minimum Load Required
• DIP24 Package
• 3 year warranty

RECOM DC-DC Converter, 80% Efficiency, 0.6% Approximate Load Regulation - REC6A Series - REC6A-2405SW/H2

When you need a power supply that stays on the straight and narrow, pick this DC-DC converter from RECOM. It's a versatile device that's compatible with standard unregulated 5V or 24V inputs. After conversion, it delivers a stable 5V DC output that lets you run low-voltage equipment such as battery-operated devices without a hitch. Harsh settings won't dent its performance, thanks to its wide operating temperature range between -40°C and +65°C without derating. An efficiency of up to 80% means little power is lost as heat during the switching process.

• Continuous short-circuit protection helps to safeguard equipment against power spikes
• Low ripple and noise, so it's unlikely to interfere with sensitive electronic equipment
• Insulated for protection against electric shocks
• Mean time between failures, when operating at +25°C, of over 1.3 million hours, for an extended service life
• Flame-retardant case and base to minimise the risk of fires spreading

Applications

• Military systems
• Aerospace industry
• Industrial electronics
• Railway sector

Does this DC-DC converter automatically recover if a short circuit occurs?

Yes. To eliminate the need for time-consuming manual intervention, the unit automatically restarts after a short circuit is cleared.
