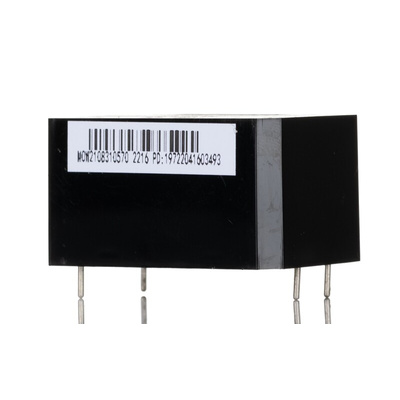

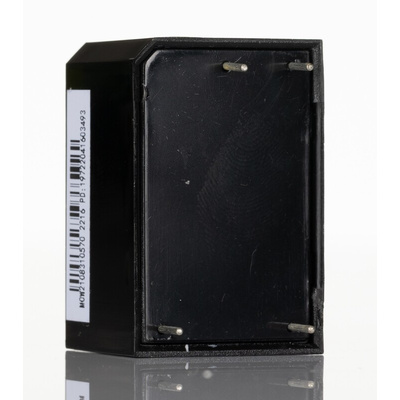

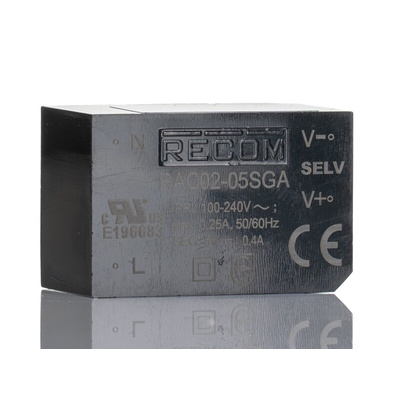

Recom Switching Power Supply, RAC02-05SGA, 5V dc, 400mA, 2W, 1 Output, 100 → 240V ac Input Voltage, Источник питания

Recom 2W, PCB Mount, Encapsulated, Single Output, Regulated Switch Mode, AC-DC Power Supply - RAC Series

RAC series 2W, universal input, single output AC / DC converter power supply with an ultracompact low profile. These universal input, single output AC / DC converters are PCB mounting and have a high efficiency, low standby power and a high operating temperature. Suitable applications for AC / DC converters include include low power supplies for clocks, remote control receivers and microcontroller circuits.

Wide input voltage range
Ultracompact low profile: H17xW22.2xD33.7 mm
Low 30 mW standby power consumption
3kVAC isolation
Low output ripple
High operating temperature of 85°C
Soft start and short circuit protection
EMC compliance to EN 55022 class B

Note

MTBF to MIL-HDBK-217F
Power derates above 75°C

Standards

EN-60950-1, UL-60950-1 (both pending)

RAC02 Datasheet
