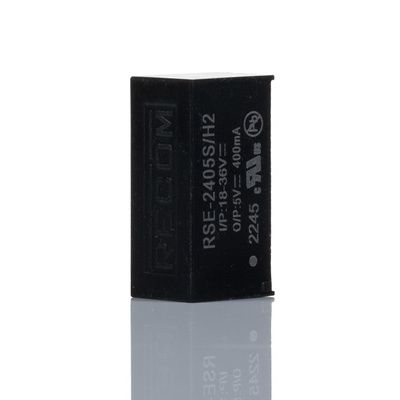

RSE-2405S/H2, Recom RSE DC-DC Converter, 5V dc/ 400mA Output, 18 → 36 V dc Input, 2W, Through Hole, +75°C Max Temp -40°C Min, Преобразователь

Recom RSE Series 2W DC-DC Isolated Converter

The RSE is a low cost isolated, regulated and short circuit protected DC-DC converter designed for industrial applications. A compact SIP8 case size, 2:1 input, 2kVDC isolation and a wide operating temperature range of -40°C to +75°C without derating makes the RSE series ideal for industrial, transport and general purpose on-board 5 V power supplies. Industrial Class A EMC levels can be met with a simple Pi-filter and the converters come with a three-year warranty.

Features and Benefits

• 2:1 Wide Input Range
• 2k V dc /1 Second Isolation
• -40°C to +75°C Operating Temperature @ Full Load
• Industry Standard Pinout (SIP8)
• EN/UL62368, UL60950, CB Report (pending)
• Low Cost
• 3 year warranty

RECOM DC-DC Converter, 2kV DC Isolation Voltage, Single Output - RSE Series - RSE-2405S/H2

Puzzling about how to step down your input voltage? Give the job to this DC-DC converter from RECOM. It reduces an input voltage between 18 and 36V DC to a regulated 5V DC output, giving you the benefit of a steady and reliable electricity supply. Efficiency of 80% means little power is lost during the switching process. To soften the blow of power surges, the unit is continuously protected against short circuits. What's more, thanks to an automatic recovery feature, the converter can handle a trip without having to be restarted manually.

Features & Benefits

• Compact dimensions of 21.8 (L) x 9.2 (W) x 11.1mm (D) boost board-packing efficiency
• Immune to ESD, which minimises the chance of interference with nearby electronic devices
• Withstands vibration, making it compatible with harsh operating environments
• Mean time between failures of over 2 million hours when operating at +25°C, for reliability throughout its extended service life

Applications

• Automotive production
• Transport industry
• Pharmaceutical manufacturing

How quickly does this converter start working?

A start-up time of 50ms means you can rest assured it gets to work almost instantly.
