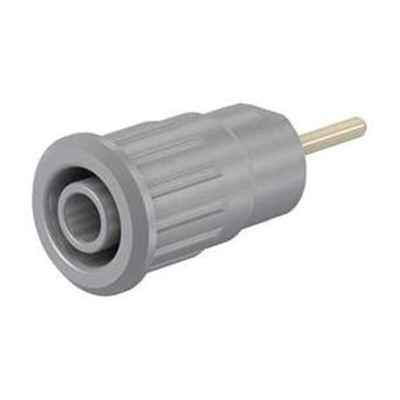

23.3130-28, Staubli Grey Female Banana Socket, 4 mm Connector, Press Fit Termination, 24A, 1000V, Gold Plating

Staubli SEB4-R Series 4 mm Press-in Sockets

SEB4-R series 4 mm press-in panel mount sockets with a rigid insulation sleeve for pressing into predrilled panels. These sockets have a 1000 V, CAT III / 24 A rating and are terminated with a 1.9 mm diameter round connecting pin. The sockets are made from machined brass and the insulation sleeves are colour coded for ease of identification. These SEB4-R series 4 mm panel mount press-in sockets are designed to accept spring loaded 4 mm plugs which also have a rigid insulation sleeve.

Features and Benefits

• Press-in fitting
• 1000 V, CAT III / 24 A rating
• Rigid, colour coded insulation
• 1.9 mm diameter pin terminal

SEB4-R Series 4 mm Press-in Sockets - Datasheet
