Siretta ALPHA14/0.5M/SMAM/S/S/26 Square Multiband Antenna with SMA Connector, 2G (GSM/GPRS), 3G (UTMS), 4G (LTE), ISM, Антенна

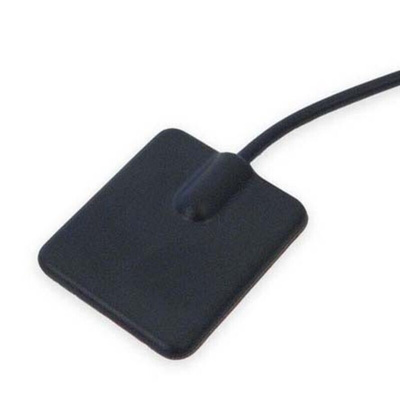

ALPHA 14 Quad Band Blade Antenna, Siretta

The ALPHA 14 is a compact, quad band, blade antenna from Siretta covering GSM/GPRS, 2G and 3G/UMTS. Intended for indoor use, you can securely attach the antenna to a surface using the 3M easy peel adhesive on the base.

Features & Benefits of the ALPHA 14
•2.7 dBi peak gain
•RG174 coaxial cable with a SMA male connector
•50 ohm impedance
•Vertical / omnidirectional polarization
•850, 900, 1800, 1900 MHz GSM/GPRS/2G
•2.1 GHz 3G
•868, 915 MHz ISM
•40 mm x 35.5 mm x 2 mm

The Alpha 14 is Siretta’s MOST COMPACT adhesive antenna, with a slim and extremely low profile design, measuring at an impressive 33.5 x 39.9 x 3mm. It can sit almost unnoticed on top most surfaces, whether that is on top of an energy meter or on the side of telemetry equipment, this antenna will suit a variety of environments and applications. Supplied with a 3M adhesive base, the Alpha 14 is perfect for quick and simple installations onto a number of different surface materials such as: metal, glass, wood and plastic. More so, the use of an adhesive base takes away the need to drill holes or apply adhesive substances - simply ’peel & press’ the antenna into its desired position.

Quad Band GSM / GPRS
3G / UMTS
ISM - 868MHz / 915 MHz
RG174 cable
33.5 x 39.9 x 3mm dimensions

Mobile Communication Antenna (GSM/GPRS/2G/3G/4G), Siretta

Datasheet
