ALPHA16/1M/SMAM/S/RP/17 Siretta - Antenna, (2400 → 2500 MHz) SMA RP Connector, Антенна

1407609
Номер производителя: ALPHA16/1M/SMAM/S/RP/17Производитель: Siretta
Цена за шт.
3924.00 руб. (С НДС) *
Количество 10+ 25+ 50+ 100+
Цена 3780.00 руб. 3630.00 руб. 3474.00 руб. 3339.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

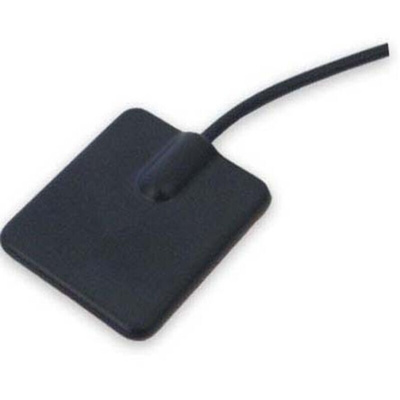

ALPHA 16 2.4 GHz Wi-Fi/WLAN Antennas, Siretta

Siretta Alpha 16 WiFi/WLAN antennas have a very small footprint, meaning they are suitable for applications where space is limited. A 3M adhesive base on the antenna also enables easy installation to various surfaces including: metal, glass, wood and plastic.
Alpha 16 antennas operate with a frequency of 2.4 GHz to 2.5 GHz and are therefore suitable for applications with WiFi, Bluetooth and Zigbee.

Features and Benefits
2.4 GHz to 2.5 GHz
Compact package: 35.5 x 39.9 mm
Adhesive 3M patch
2 dBi peak gain

The Alpha 16 is supplied, as standard, with 1m of RG174 coaxial cable, terminated with a reverse polarity SMA male connector.

The Alpha 16 is a slim, WiFi dedicated antenna. Its miniature design with a footprint size of 35.5 x 39.9 mm. this antenna will fit discreetly onto most surfaces, whether that is on a work top or side of a wireless modem, you will not be stuck for mounting positions. It is supplied with a 3M adhesive base, making this antenna perfect for quick and simple installations onto a number of different surface materials such as: metal, glass, wood and plastic. More so, the use of an adhesive base takes away the need to drill holes or apply adhesive substances - simply ’peel & press’ the antenna into its desired position.

WiFi / WLAN 2.4GHz / 5GHz Bluetooth / ZigBee Through Adhesive

2.4GHz Antennas

Техническая спецификация
pdfDatasheet
Внутренний/Внешний:
Внешний
Кабель - длина:
Поддерживаемые диапазоны частот:
2400 → 2500 МГц
Серия:
ALPHA 16
Тип антенны:
Slim
Тип коннектора:
SMA RP
Тип разъема:
Male
