Siretta ALPHA7/3M/FMEF/SMAM/S/S/11 Puck Multiband Antenna with FME, SMA Connector, 2G (GSM/GPRS), GPS, Антенна

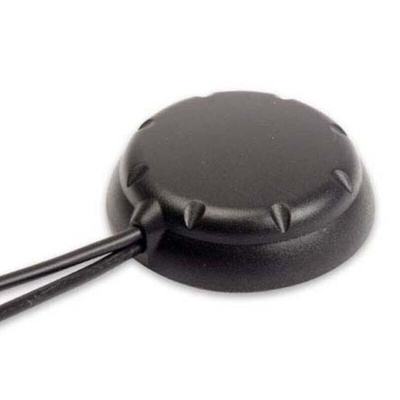

ALPHA 7 Puck Dual Band GSM/GPRS & GPS Antenna, Siretta

The ALPHA 7 Puck Antenna from Siretta combines a dual band GSM/GPRS and a dual band GPS antenna in one compact package. It also benefits from an easy peel adhesive base — ideal for most surfaces and damage resistant. The antenna can be used in both indoor and outdoor environments and is ideal for tracking and location based applications.

Features & Benefits of the ALPHA 7 Puck Antenna
•RG174 coaxial cable
•-40° C to +85° C operating temperature range
•50 ohm impedance
•GSM peak gain: 0 dBi
•GPS peak gain: 27 dB
•900, 1800 MHz GSM/GPRS
•1575.42 MHz GPS

The Alpha 7 is a compact, puck-shaped GSM & GPS combination antenna. This antenna combines two separate antennas into a single package that measures only ø50 x 17.5mm. The Alpha 7 is well suited to most GSM & GPS systems that require an ’all-in-one’ antenna solution. Combination antennas are perfect for applications where the use of multiple antennas is not an option for installation or space confinement reasons. Supplied with an adhesive base, the Alpha 7 is perfect for quick and simple installations onto a number of different surface materials such as: metal, glass, wood and plastic. More so, the use of an adhesive base takes away the need to drill holes or apply adhesive substances - simply ’peel & press’ the antenna into its desired position

Dual Band GSM / GPRS
GPS
Combined
Adhesive

Multi-band Antennas, Siretta

Datasheet
