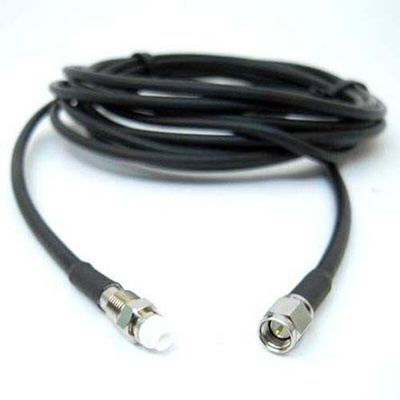

ASMA1500F058L13, Siretta ASM Series Male SMA to Female FME Coaxial Cable, 15m, LLC200A Coaxial, Terminated, Кабель

SMA Male to FME Female LLC200A Coaxial Cables, Siretta

Available in two cable lengths with an SMA Male connector and an FME Female connector:

ASMA300E058L13 - 3 m cable (140-7762)
ASMA500F058L13 - 5 m cable (124-8838)
ASMA1000F058L13 - 10 m cable (124-8839)
ASMA1500F058L13 - 15 m cable (140-7623)\t
ASMA2000F058L13 - 20 m cable (140-7628)\t

Cable Specifications
Impedance: 50 Ω
Loss dB/M @ 1.8 GHz: 0.52, @ 2.1 GHz: 0.64
Cable: LLC200A
Operating Frequencies: Up to 6 GHz

Dimensions
Core: 0.94 mm copper wire
Insulator: 2.79 mm GAS-FPE
Shield: tinned copper braid
Jacket: 4.95 mm PVC

The LLC200A cable is robust and flexible, and with a diameter of 4.95mm similar to standard RG58. However, it is not suitable for applications where a tight bend radius of less that 20mm is required.This product page contains SMA male to N-Type male extension cable assemblies using LLC200A coax cables. The N type is one of the most commonly used connector types for larger outdoor systems.

Loss: 0.52 dB/M @ 1.8GHz
Loss: 0.64 dB/M @ 2.1GHz
Range of cable lengths from 3M to 20M
Increase your received signal strength
SMA to FME Female
15M Cable
