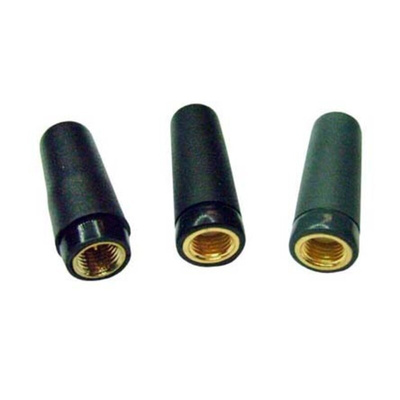

DELTA 8A WiFi/WLAN/Bluetooth/ZigBee Stubby Antenna, Siretta
The Delta 8A is the smallest WiFi antenna from Siretta at just 26 mm. It has a 1/4 wave dipole and can be used in WiFi, Bluetooth or Zigbee applications.
The Delta 8A has an SMA male connector.
Operating Temperature: -40 to +85°C
Impedance: 50 Ω
Gain: 0 dBi
VSWR: <2:1
Polarisation: Vertical
Radiating element: 1/4 wave
Operating Frequencies
WiFi/WLAN/Bluetooth/ZigBee: 2.4 to 2.5 GHz
Dimensions
Length: 27 mm
Diameter: 10.5 mm
The Delta 8A is Siretta’s SMALLEST WIFI antenna, measuring at an impressive 26mm long. The Delta 8A manages to compact a wave dipole into incredibly small housing that really meets the demands of WiFi users who require a covert, non-obtrusive antenna design. The Delta 8A can be used with various WiFi, Bluetooth and Zigbee applications, bearing in mind gain performance are slightly compromised, by its miniature size, in comparison to the Delta 7A and Delta 6B/C. The Delta 8A is aimed at more space conscious WiFi applications that require an extremely compact, good quality antenna.
WiFi / WLAN
2.4GHz
Direct Connect
SMA Male RP
2.4GHz Antennas
